AGFA DR 600 - Positioning Screen of the Tube Head Display

Positioning screen of the tube head display
2
3
4
1
6
7
8
9
10
5
1.
Automatic positioning status (moving, position reached, error)
2.
Illustration of selected automatic position
3.
Source Image Distance (SID)
4.
X-ray tube angle (alpha)
5.
X-ray tube rotation (beta)
6.
Bucky position
7.
Bucky tilting angle
8.
Parking position
9.
Cleaning position
10.
Automatic position selector

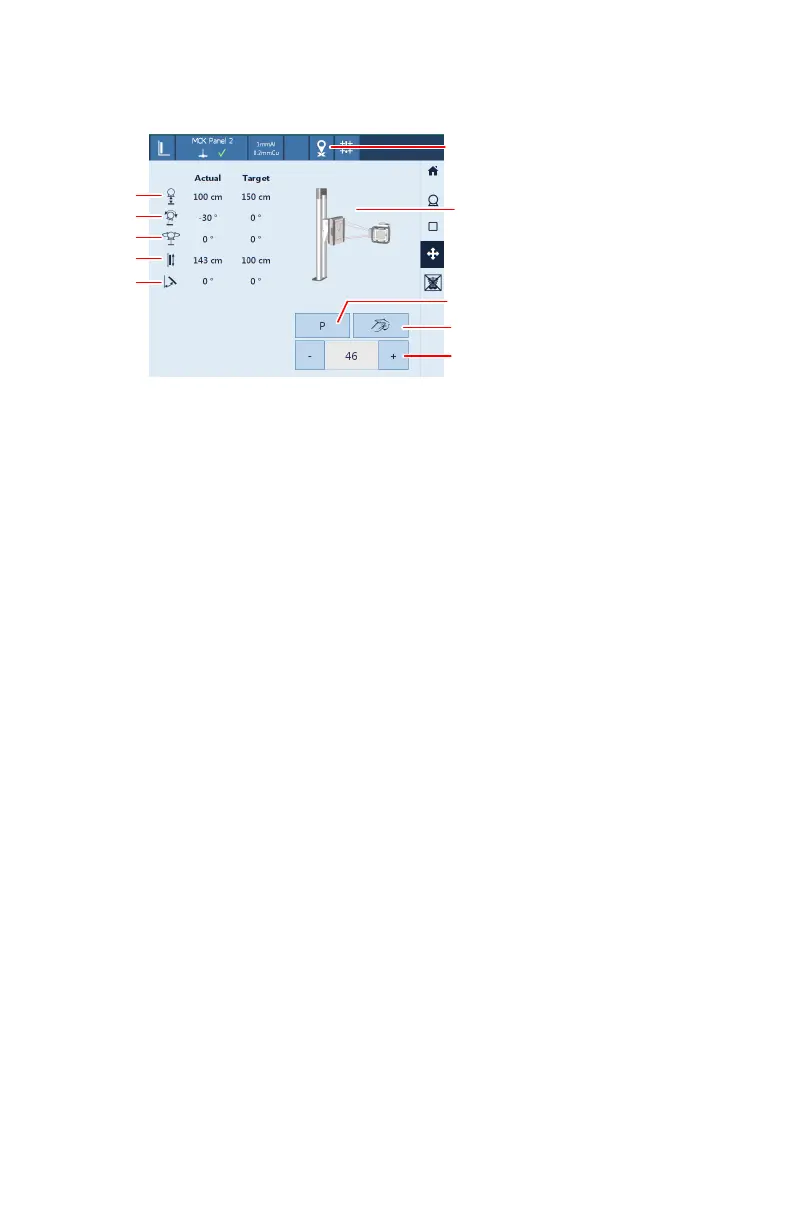

Figure 69: Positioning controls
