Agilent Technologies 1290 Infinity II 2D-LC User Manual

2D-LC User Guide 169
6 Method Parameters
Set up a Peak-Based Experiment Graphically

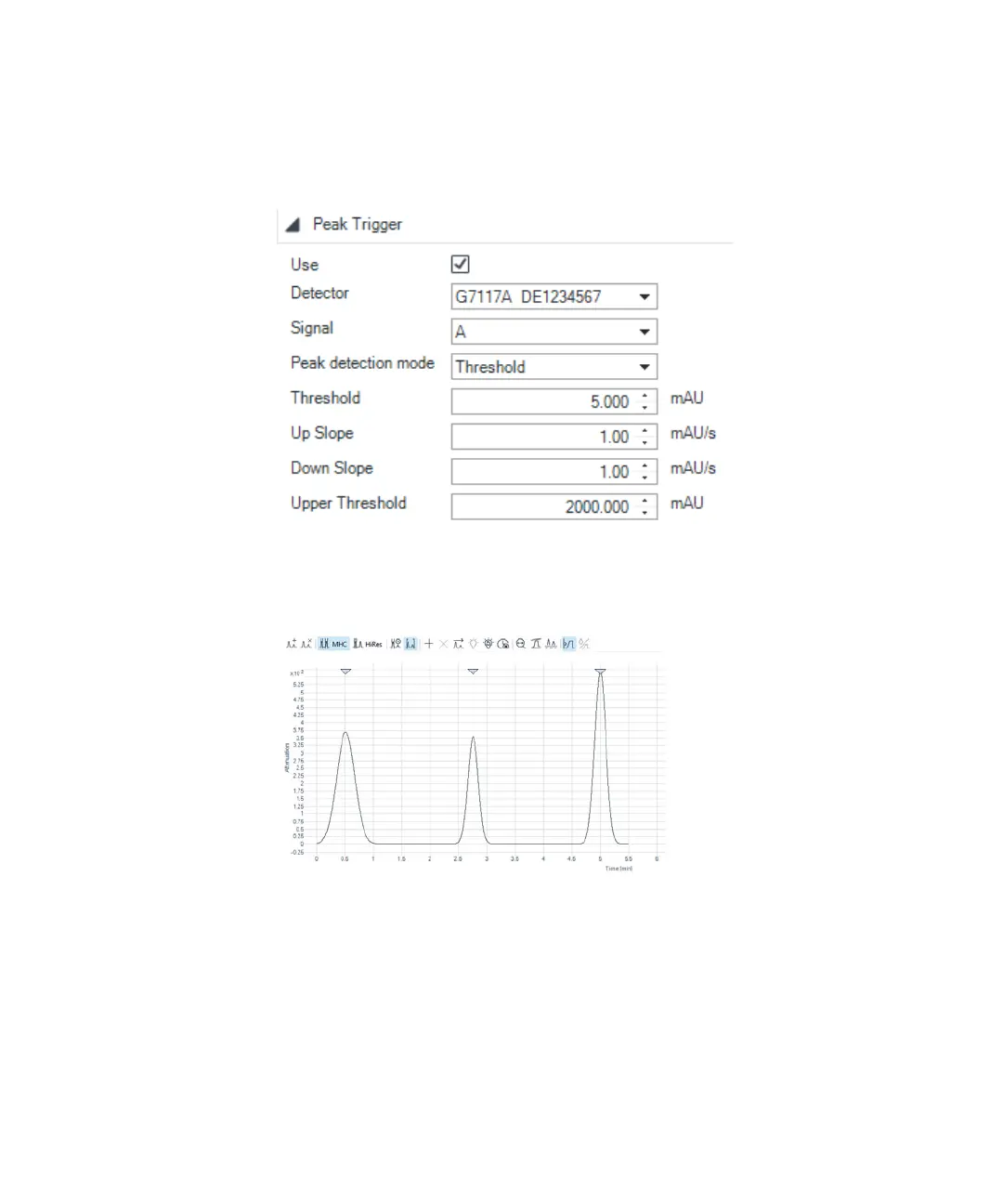

3 Select Detector and Signal used for triggering.
In this example G7117A and Signal A are selected.
4 Select MHC or HiRes.
The icon corresponds to the peak-based operation. In this example HiRes is
selected.
5 Double-click one of the grey triangles located above the chromatogram.
A bracket appears, which marks a peak-based area (start and end
peak-based) which is taken up in the sampling table.
