Agilent Technologies 1290 Infinity II 2D-LC User Manual

6 Method Parameters
Set up a Peak-Based Experiment Graphically
2D-LC User Guide 170

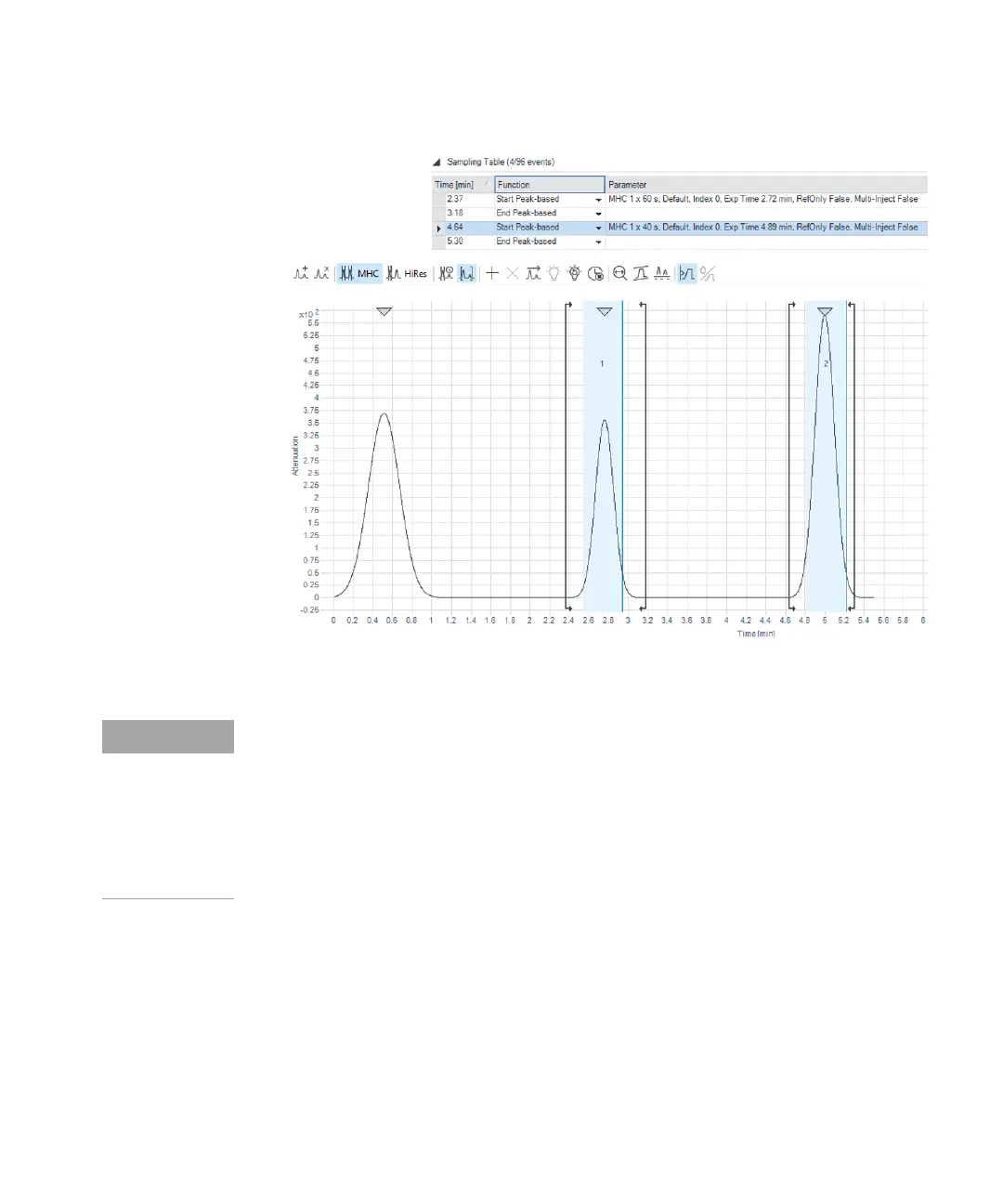

Figure 85 Two selected peaks in peak based mode and corresponding peak-based sampling
table
NOTE
To generate a peak based event in the preview, you can also use the add icon or
do a right click somewhere into the preview, and press add cut.
In the sampling table you can add the events start and end peak-based, see “Use
Peak Trigger” on page 148 .
For adjusting the peak-based area it can be either be done by grabbing start and
end bracket and moving along in the preview or by adjusting the times in the
sampling table.
