2D-LC User Guide 271
9 Data Analysis
GC Image Basic Information
4 To improve the separation in
2
D, a shallower
2
D gradient (e.g. from 25 – 75 %
B) could be used. The setup of this
2

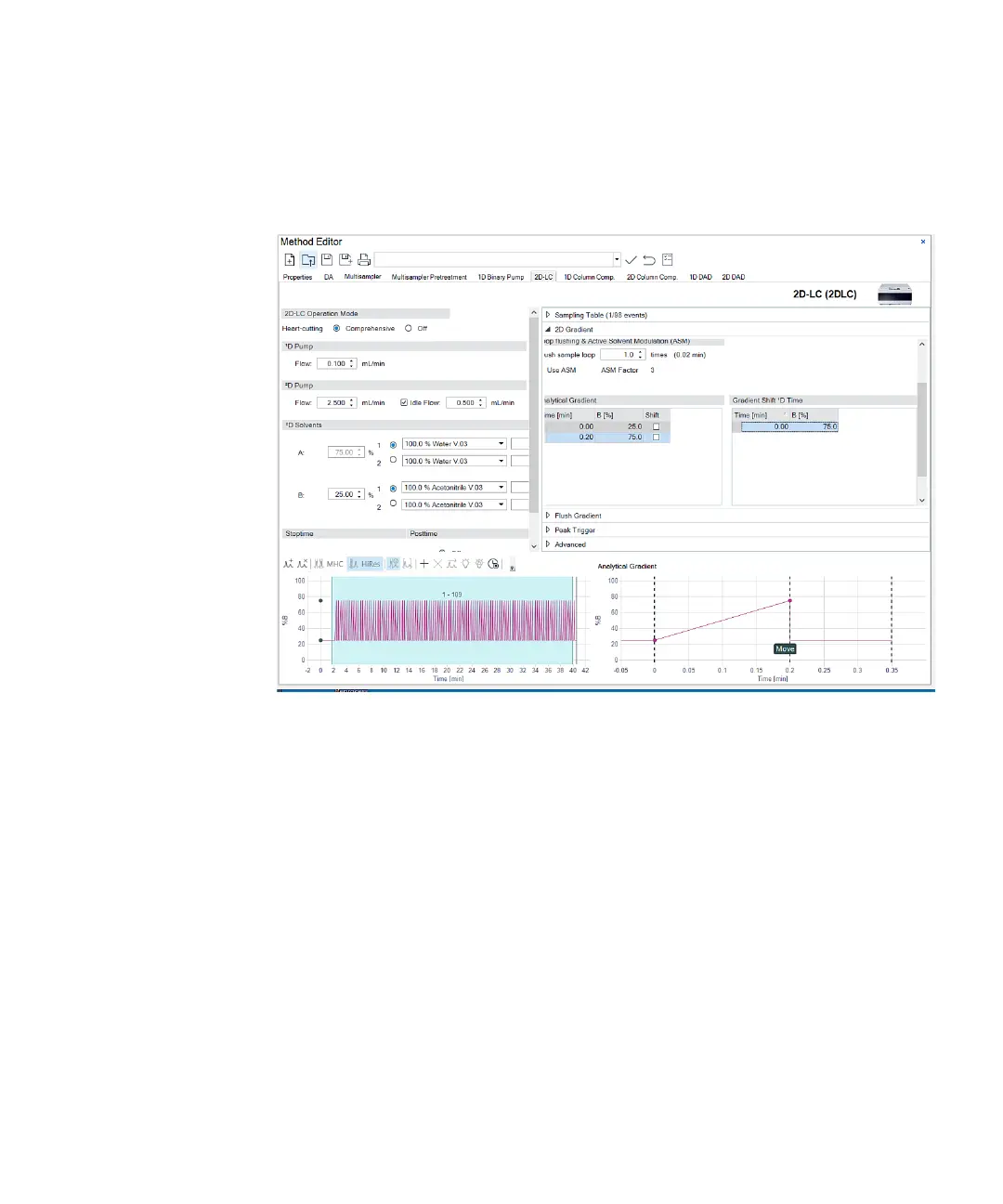

D method is shown below (this is just
shown for explanation; you do not need to run this method!):
The separation resulting from using repeating gradients from 25 – 75 % B in
the second dimension is shown below:
