9 Data Analysis
GC Image Basic Information
2D-LC User Guide 270
2 In 2D-LC System>
2

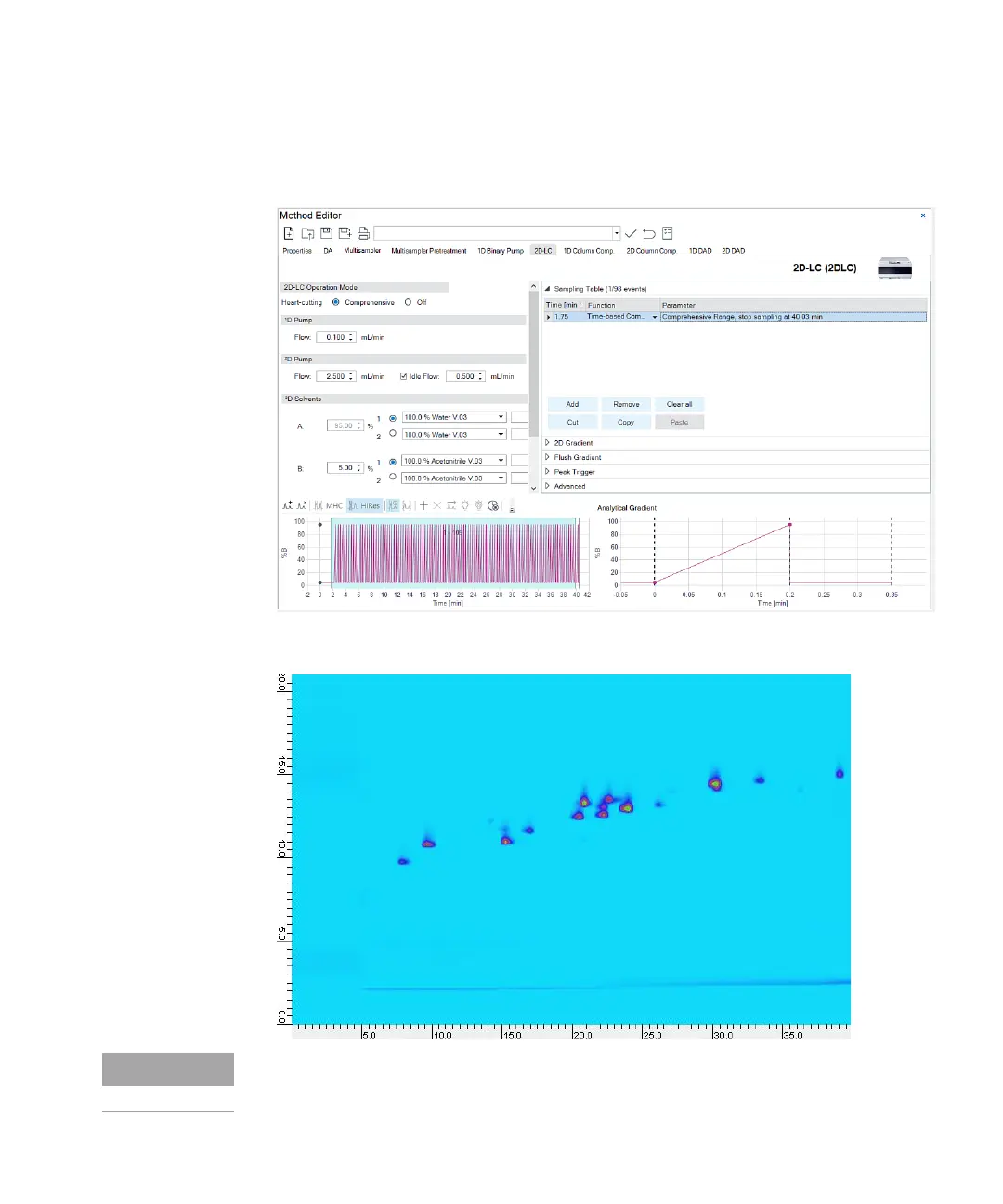

D Pump, set up a
2
D pump and modulation method with
repeating gradients from 5 – 95 % B as shown below:
3 Run the comprehensive 2D-LC analysis.
The resulting separation should look similar to the one shown below:
Notice how the peaks are distributed around a diagonal line, indicating related
separation mechanisms in the first and second dimension.
