2D-LC User Guide 65
4Installation
Hardware Installation
Multiple Heart-Cutting Configuration
2D-LC instruments that are used for Multiple Heart-Cutting or High-Resolution
Sampling 2D-LC require additional MHC decks. For MHC configurations, both the
standard 2D-LC valve (G4236A) and the ASM valve head (G4243A) are
supported. The valves can be conveniently attached to any Infinity II pump in the
stack. Depending on the valve head that is used, different transfer capillaries
(6a/6b) must be installed. For installation, please follow the guidance below.

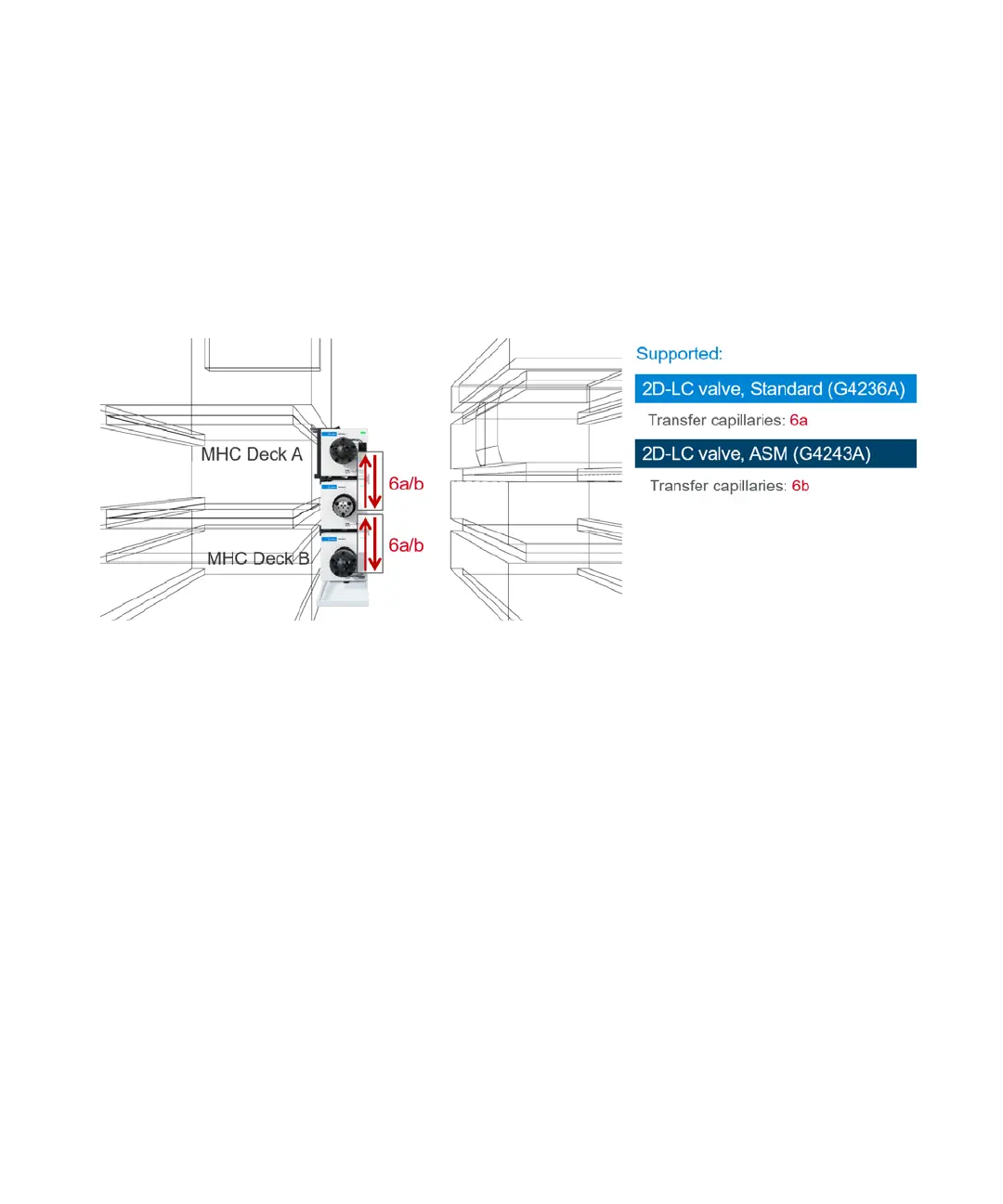

Figure 27 Schematics of a Multiple Heart-Cutting (MHC) Configuration with supported valves
and transfer capillaries.
