Agilent Technologies 1290 Infinity II 2D-LC User Manual

2D-LC User Guide 71
4Installation
Hardware Installation

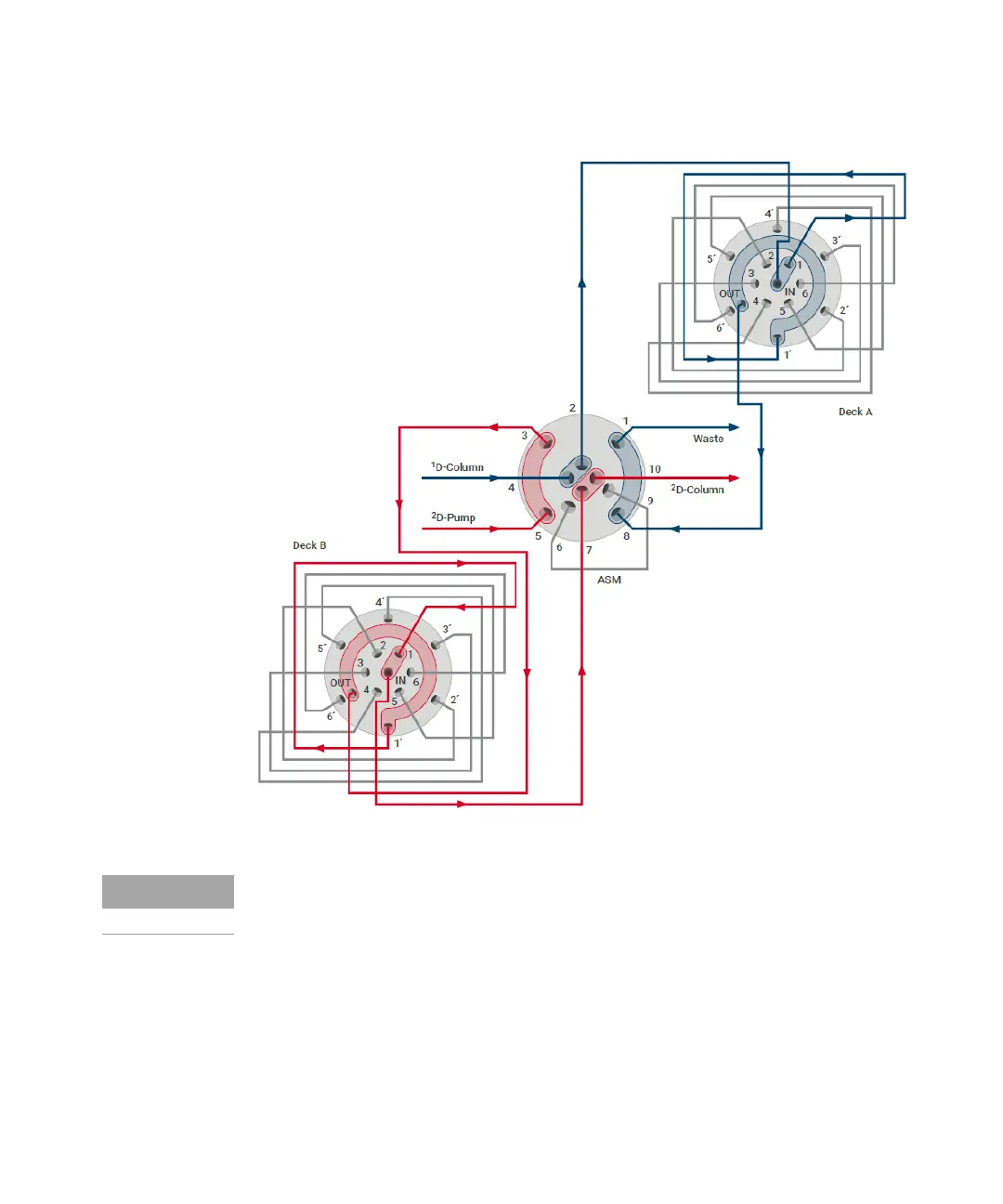

Figure 30 Schematic representation of the ASM 2D-LC Valve (G4243A) in countercurrent flow.
NOTE
Against the example shown in the figure above, for 1200 bar MHC Valves that
have a different symmetry, the connection is OUT/IN.
