Configure the 2D-LC Cluster

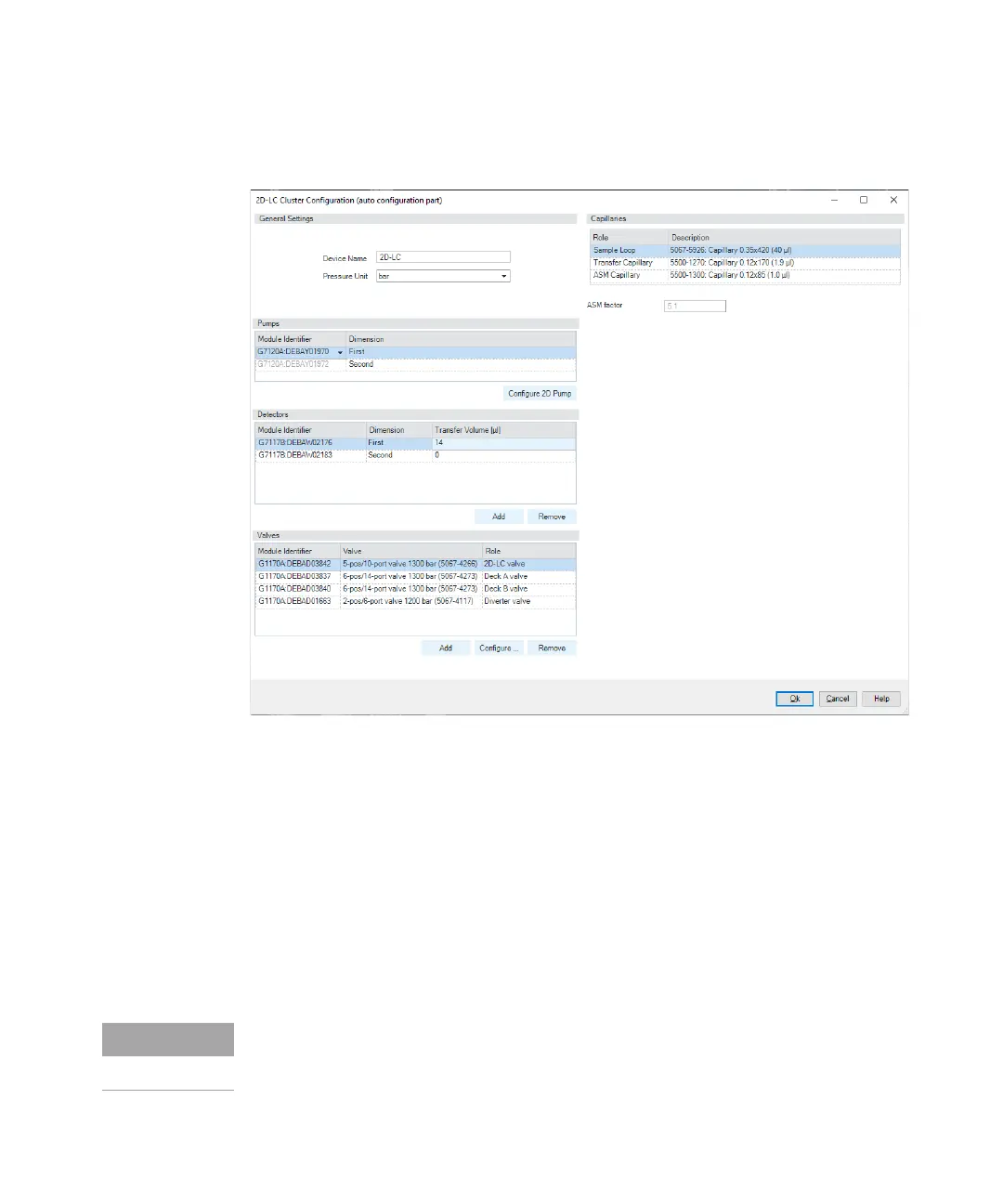

Figure 45 2D-LC Cluster Configuration (for an ASM Valve, MHC Valves and a Diverter Valve)
The 2D-LC software configuration window allows the following:
• Verification of the
1
D and
2
D pump configuration
• Configure
2
D pump
• Add and select
1
D and
2
D detectors and define the transfer volume
• Configure the different valves like 2D-LC Valve Head, MHC decks (if multiple
valve heads are available), and diverter valve
• Capillary connections like Sample Loops, transfer, and ASM capillary
• Define AMS factor (if ASM valve is available)
The 2D-LC Cluster Configuration window can look different depending on what
kind of device setup has been installed. For example, for a single sample loop
setup an extra check box appears.
