Instrument Diagnosis
Tests
TapeStation Test Tape
The Agilent TapeStation Test Tape (5067-5601) is a device designed to be used
with the TapeStation system for hardware diagnosis. The TapeStation Test
Tape can be used to check the performance of electrical and optical
components.
It is part of the accessories shipped with the instrument, see “Accessories
Shipment List” on page 224.

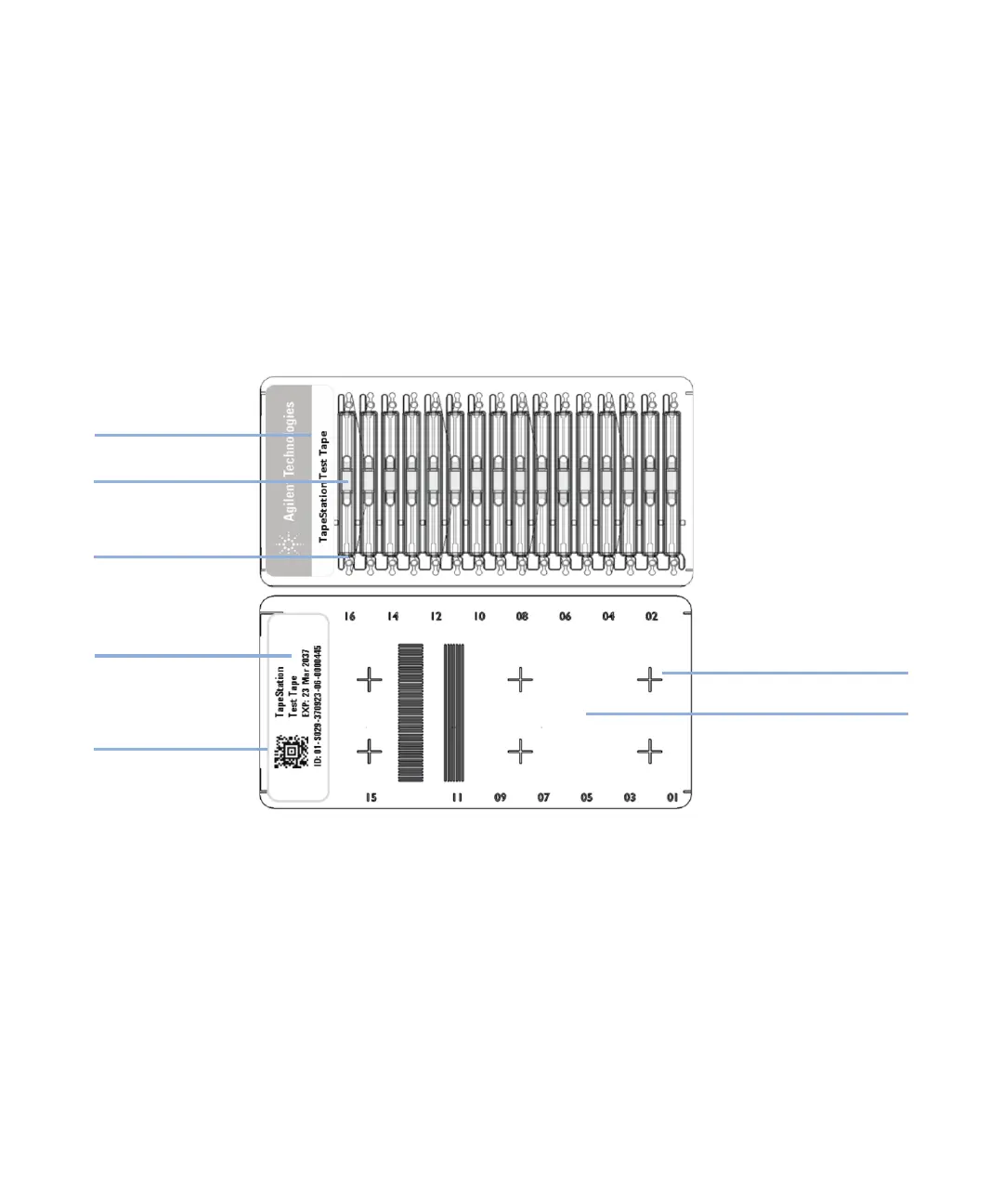

Figure 40 Tap eS ta tio n Te st Tap e
Within the System Diagnostics, it can be used for routine confirmation of the
system functionality in the System Verification (see “System Verification” on
page 116) or for instrument troubleshooting in the extended Hardware
Troubleshooting tests (see “Hardware Troubleshooting” on page 117) as
directed by your support representative.
Dialogues during test suite execution (see “Executing System Verification
Tests” on page 120) will request you to insert this TapeStation Test Tape to the
ScreenTape nest.
