Making a Measurement
Sampling Measurements
Sampling Measurements
This section covers the tasks for sampling measurements.

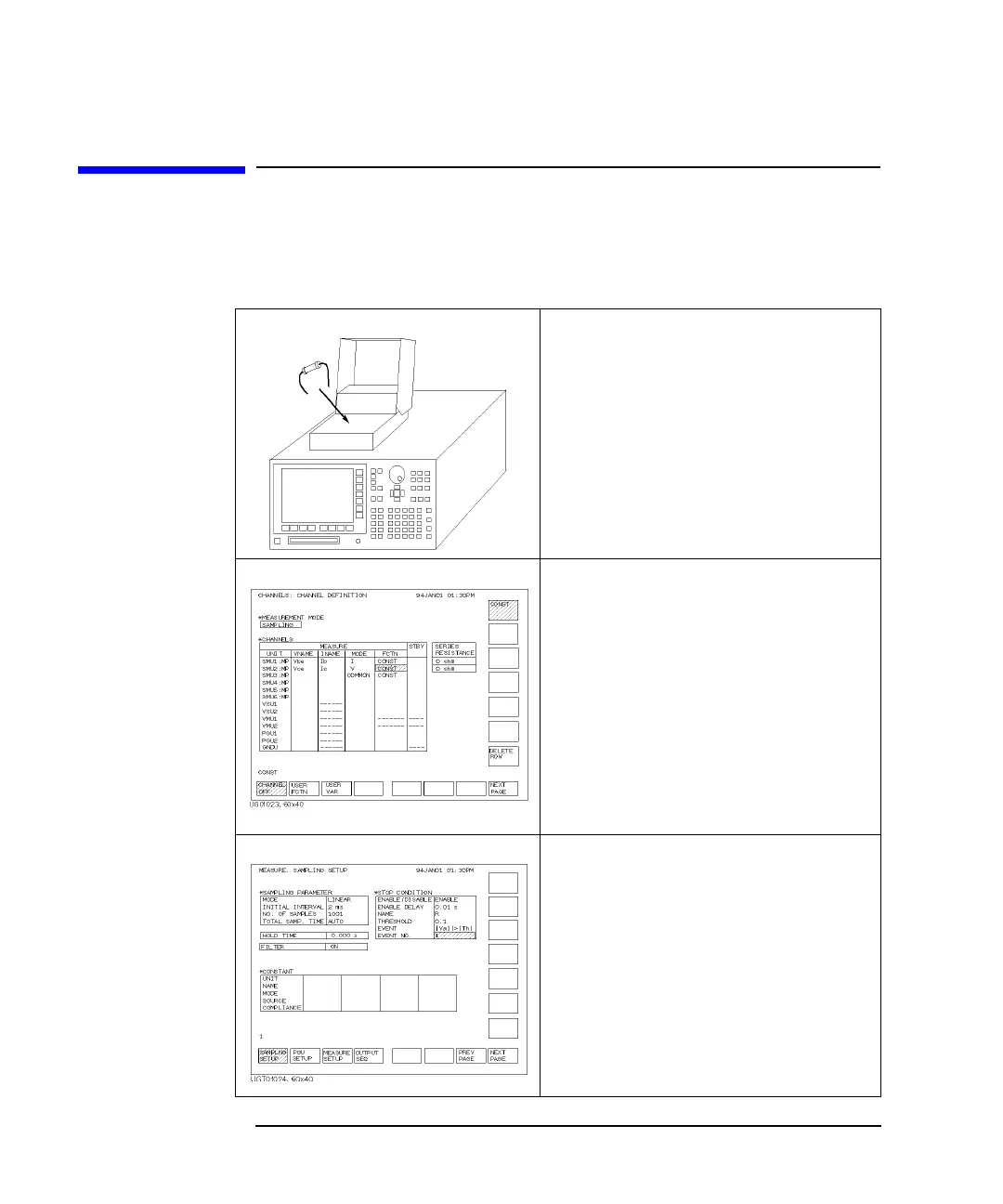

The basic procedure to test your DUT is as follows:
1. Connecting your DUT to the
4155B/4156B. See “Connecting DUT” on
page 4-3 for procedures.
2. Defining measurement mode and
measurement units that you use to make
measurement. The following tasks are
described:
• To Define Sampling Measurement
Units.
• To Define a User Function (see
previous section)
• To Control R-Box (see previous
section)
3. Setting the source parameters of the
units. The following tasks are described:
• To Set up Sampling Parameters
• To Set up Constant Output
• To Define Measurement Stop
Conditions
• To Set up PGU Pulsed Output (see
previous section)
