4-30 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Making a Measurement
Sweep Measurements
To Display List Results
1. Press Display key in the PAGE CONTROL key group.
2. Select DISPLAY SETUP primary softkey.
3. In the DISPLAY MODE field, select LIST secondary softkey.
4. In the LIST area, select the secondary softkey of the variables for which you
want to list the measurement results.
When the pointer is in the NAME row, the allowable variable names appear in the
secondary softkey area. To set a variable name, select the desired secondary softkey.
The allowable names are names that you already set up on CHANNEL
DEFINITION, USER FUNCTION, and USER VARIABLE screens.
To set up variable to be displayed on the LIST page
In DATA VARIABLES fields, select secondary softkey for desired variable.
Example

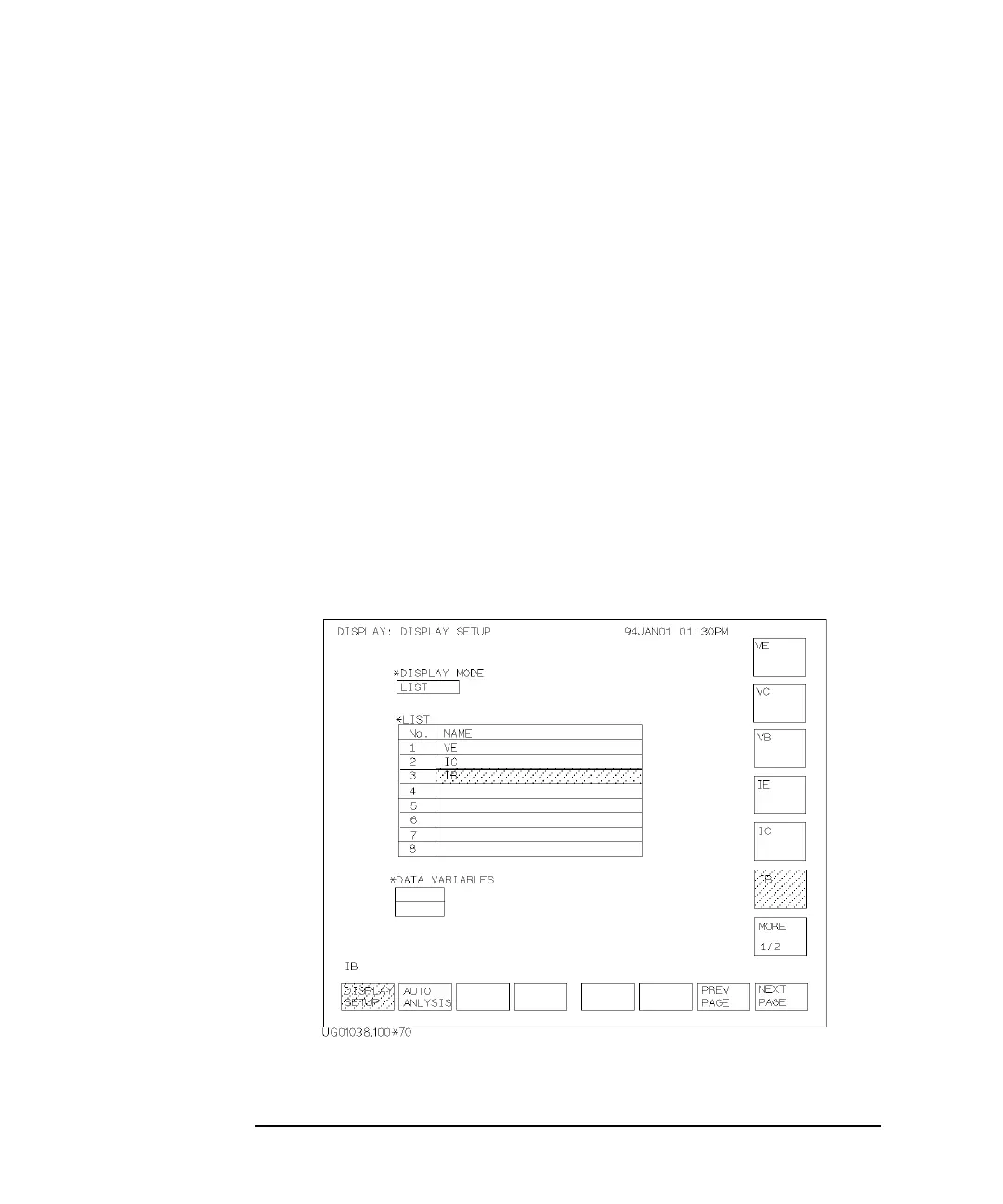

Following figure is an example setup to display VE, IC, and IB on LIST screen.
To Next Page
