2-4 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Measurement Mode
Sweep Measurement Mode
Basic Sweep Measurement
Basic sweep measurement uses one sweep source (VAR1).
The following sweep types are available:
• LIN/LOG
• Linear staircase
• Logarithmic staircase
• SWEEP MODE
• Single Source channel sweeps the output from user specified start value to
stop value.
• Double Source channel sweeps the output from user specified start value to
stop value, then from stop value to start value.

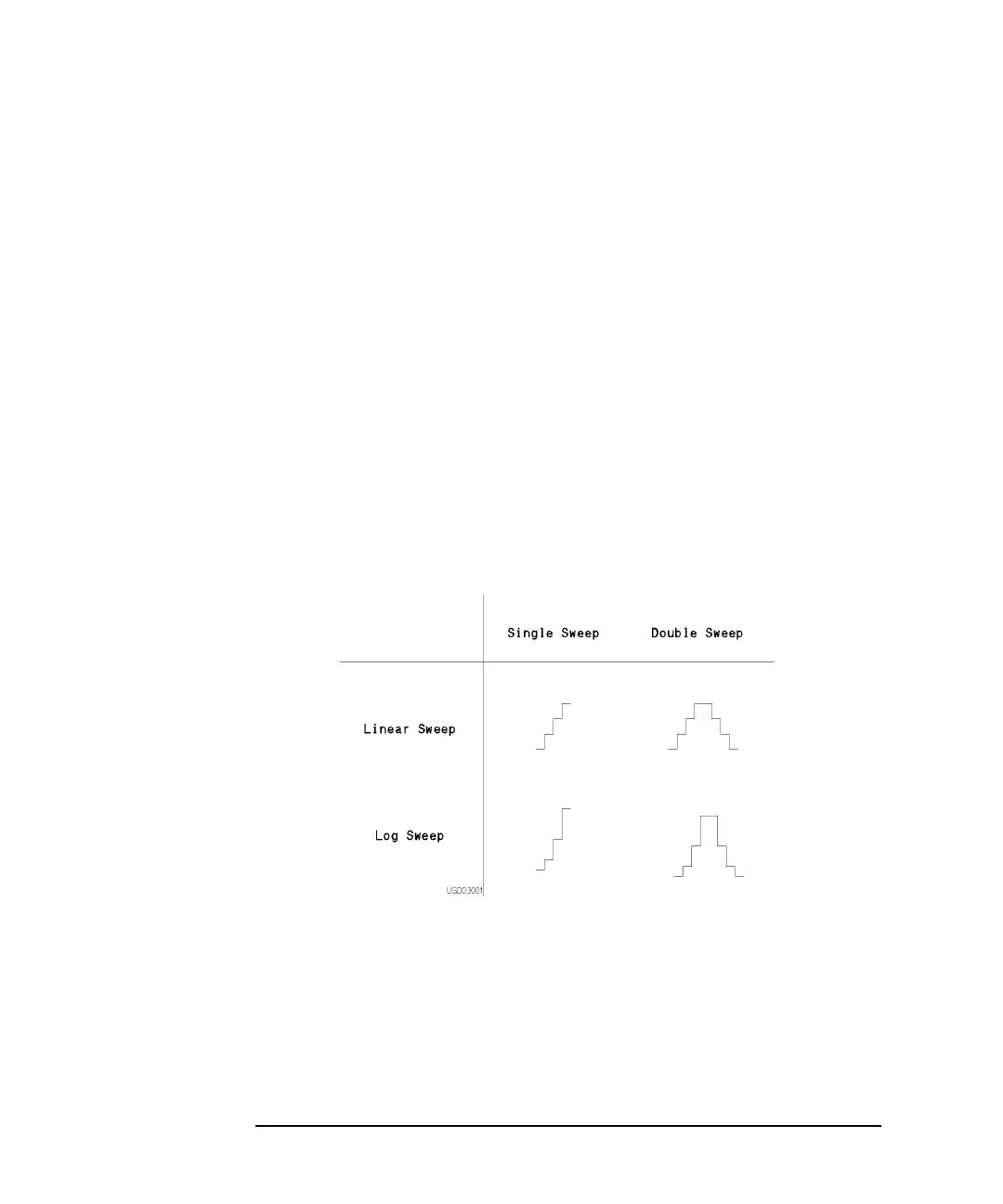

You can select any combination of LIN/LOG and SWEEP MODE as shown in the
following table:
