6-26 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Screen Organization
MEASURE Screen Group

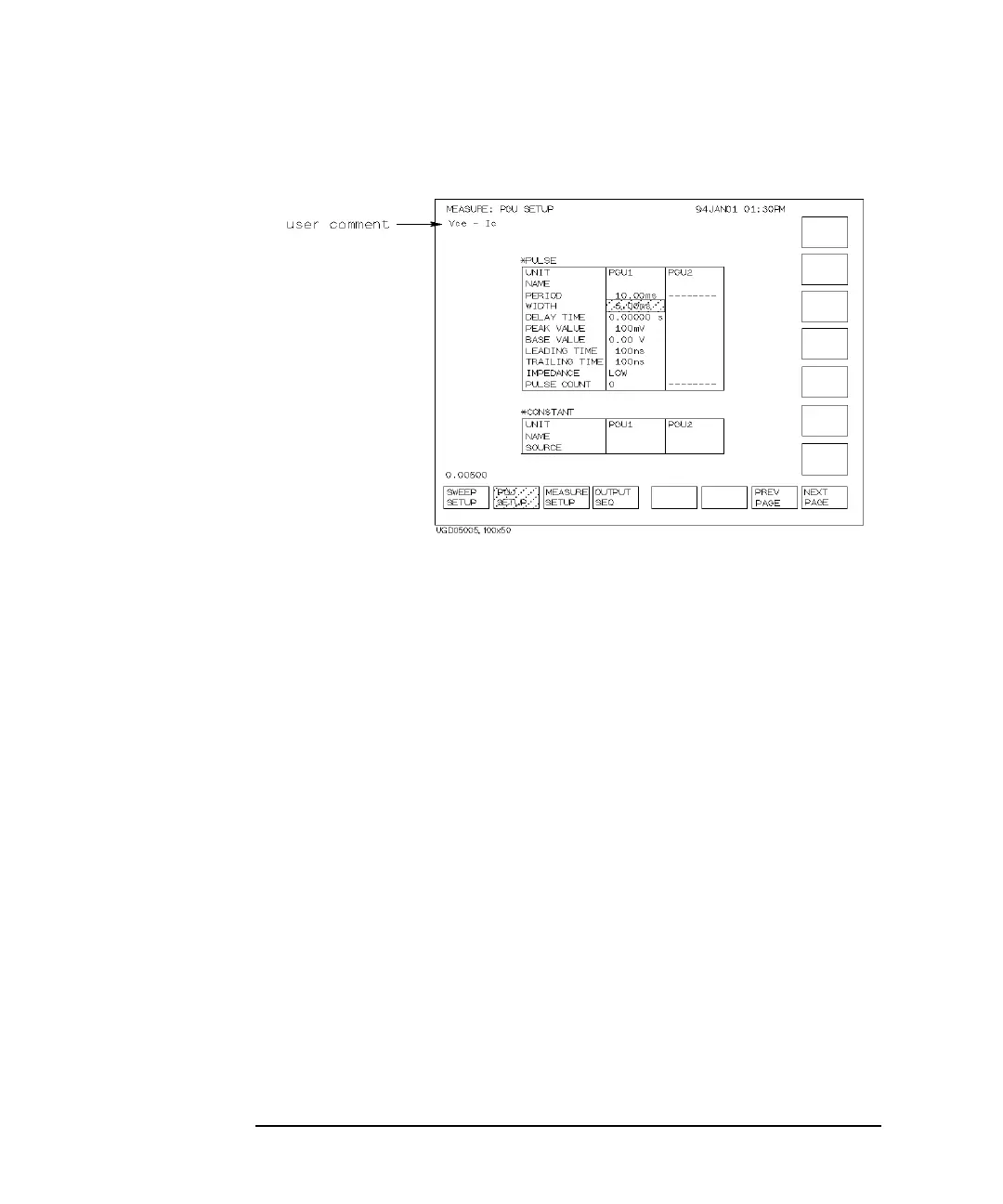

MEASURE: PGU SETUP screen
On the "MEASURE: PGU SETUP" screen, you set output parameters for each
PGU. For more information about PGUs, see “Pulse Generator Unit (PGU)” in
Chapter 1.
User Comment
In this field, you can enter a desired comment. The comment you enter here is also
displayed in the CHANNELS, MEASURE, DISPLAY, and GRAPH/LIST screen
groups.
PULSE
You set the pulse output parameters in the PULSE area.
UNIT and NAME are defined on the CHANNELS: CHANNEL DEFINITION
screen.
• PERIOD
PERIOD field specifies the pulse period of the PGU. Note that the pulse period
of PGUs is independent from that of the SMUs.
• WIDTH
WIDTH field specifies the pulse width. The pulse width must be less than the
pulse period.
