4-20 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Making a Measurement
Sweep Measurements
To Set up Constant Output
Constant voltage/current source is the measurement unit defined as CONST in the
CHANNELS: CHANNEL DEFINITION screen. To set up the constant output
source, press Meas front-panel key. The MEASURE: SWEEP SETUP screen is
displayed.
1. CONSTANT : SOURCE
Enter the desired output value of the constant source.
2. CONSTANT : COMPLIANCE
Only for SMU. Enter the compliance value for the constant source.
You cannot change UNIT, NAME, and MODE in this screen. To change the values,
go to the CHANNELS: CHANNEL DEFINITION screen.

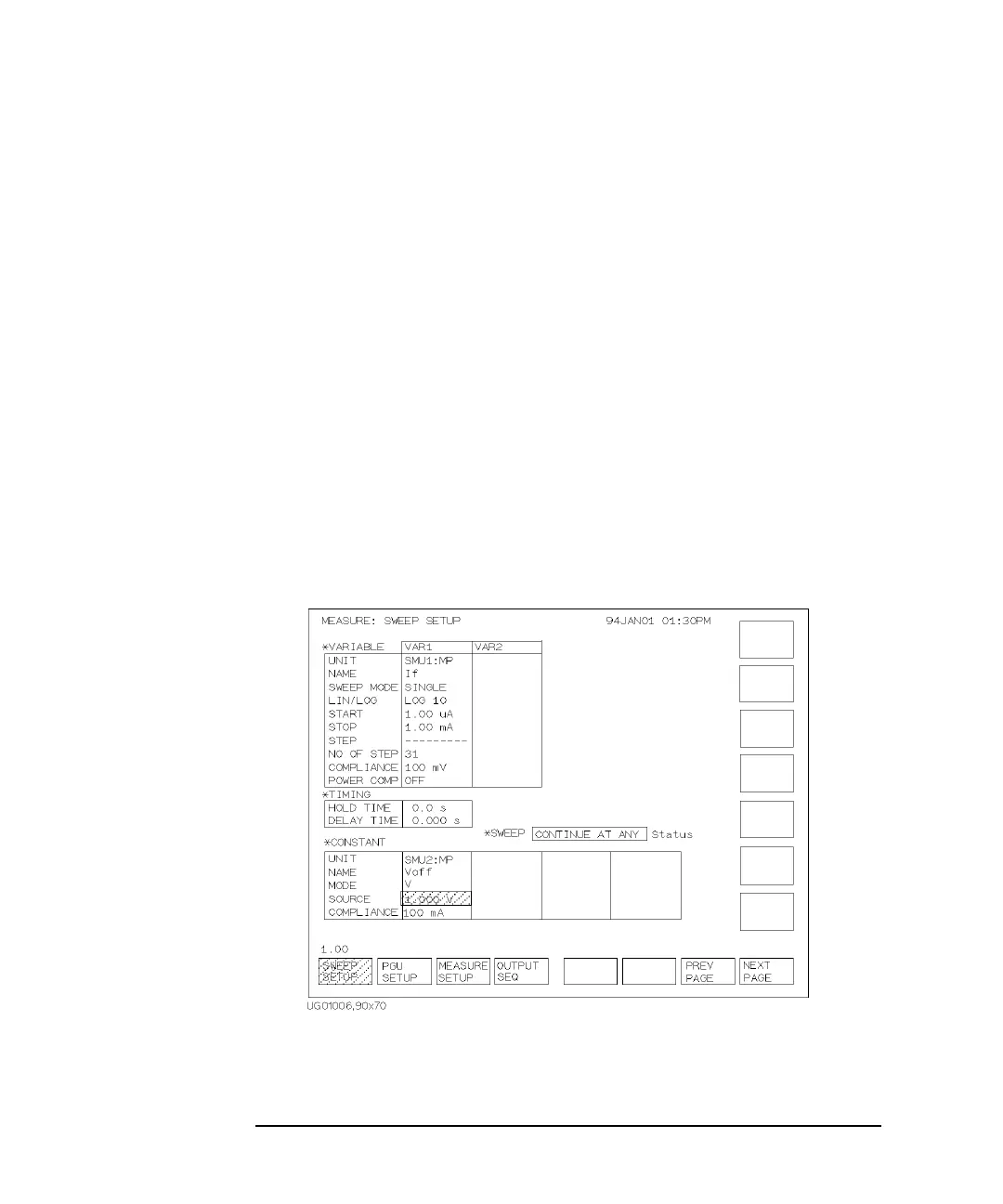

Example
The following example shows the constant output conditions (CONSTANT
parameters):
