7-38 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Data Variable and Analysis Function
Analysis Function
Cursor
Cursors are used to specify the position for line drawing or scaling functions on the
GRAPH/LIST: GRAPHICS screen. Refer to “Line Drawing” on page 7-39 and
“Scaling Functions” on page 7-41.
You can select a short cursor, which is a cross "`+'", or a long cursor, which is a cross
with long lines.
You can move the cursor anywhere in the plotting area by using arrow keys of the
Marker/Cursor key group.

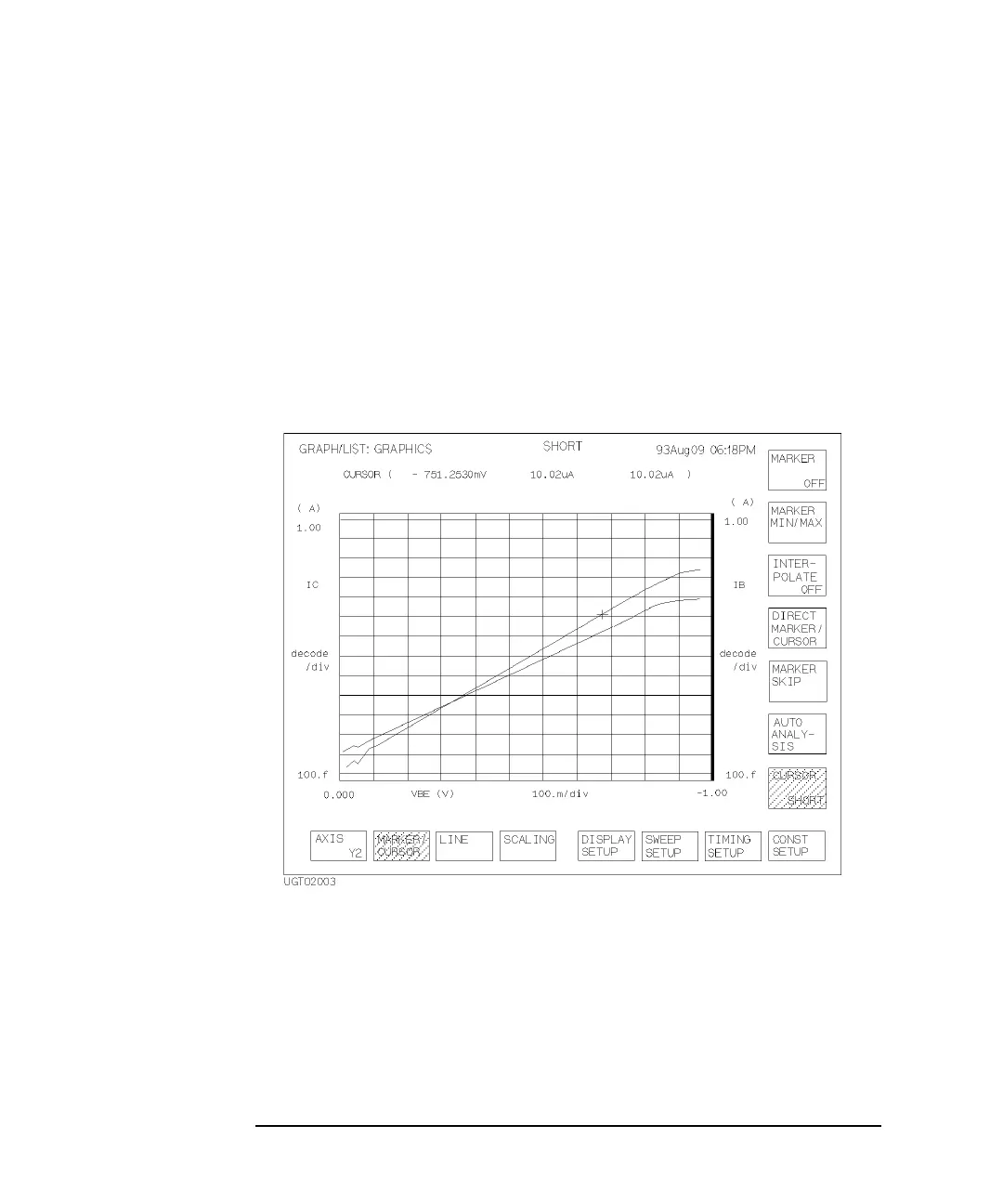

Figure 7-5 Cursors on the GRAPH/LIST: GRAPHICS screen
