5-20 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Analyzing Measurement Results
Manual Analysis
To Change Range of X or Y Axis Scale
1. Select DISPLAY SETUP primary softkey.
2. Select RE-SETUP GRAPH secondary softkey.
3. Move pointer to maximum or minimum value field of X or Y axis scale by using
the arrow keys, then edit the setup value by using ENTRY keys or rotary knob.
4. Select EXIT primary softkey to exit RE-SETUP GRAPH mode.
To exit without changing range of X or Y axis scale
Select CANCEL primary softkey.
Example

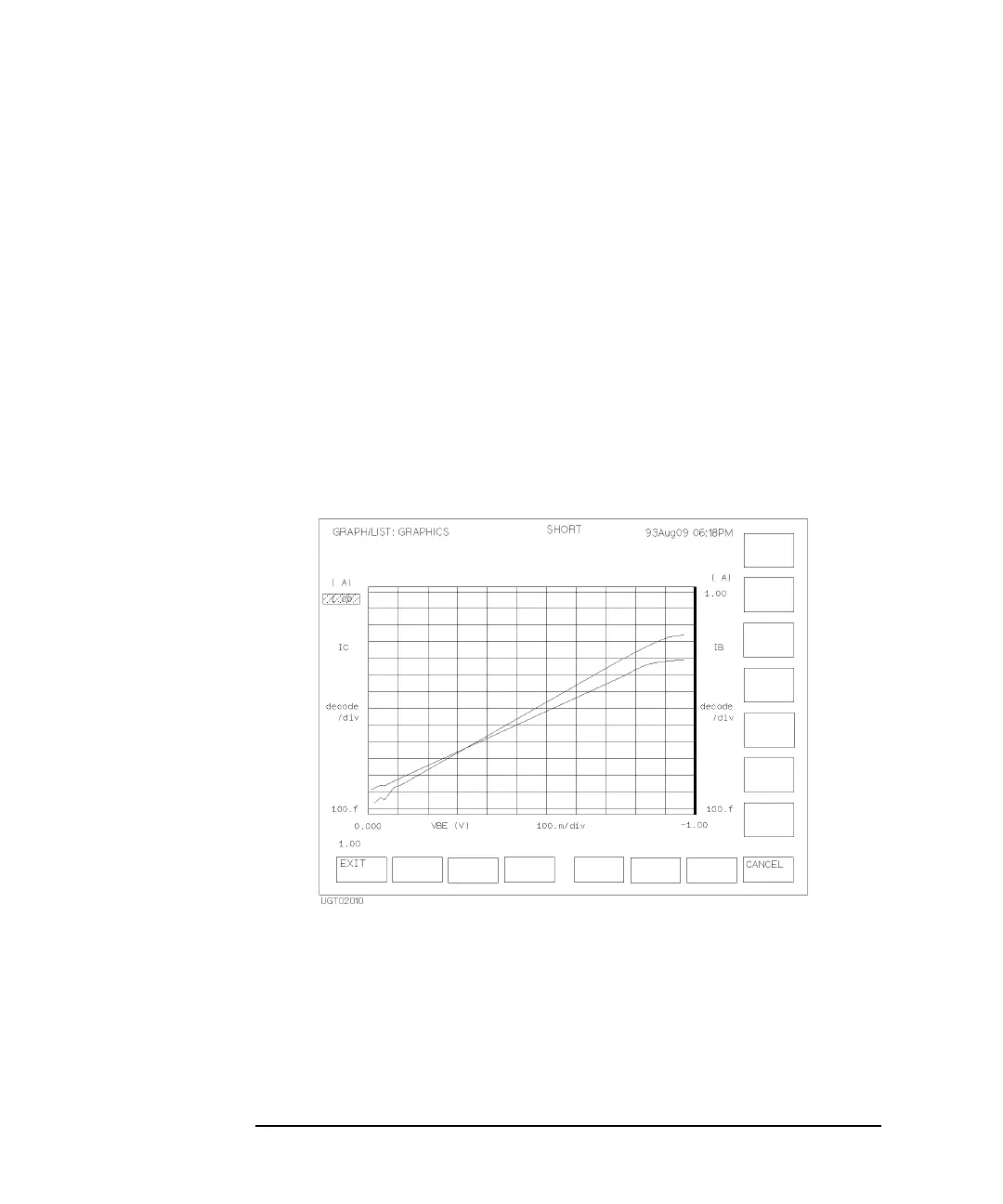

The following figure shows an example setup to change maximum value of Y1 axis.
To Next Page
