Agilent 4155B/4156B User’s Guide Vol.2, Edition 5 5-19
Analyzing Measurement Results
Manual Analysis
To Change Data Variable on Graph
1. Select DISPLAY SETUP primary softkey.
2. Select RE-SETUP GRAPH secondary softkey.
3. Move the pointer to desired data variable field by using the arrow keys, then
select secondary softkey to enter the desired variable name.
4. Select EXIT primary softkey to exit the RE-SETUP GRAPH mode.
To exit without changing data variable
Select CANCEL primary softkey.
Example

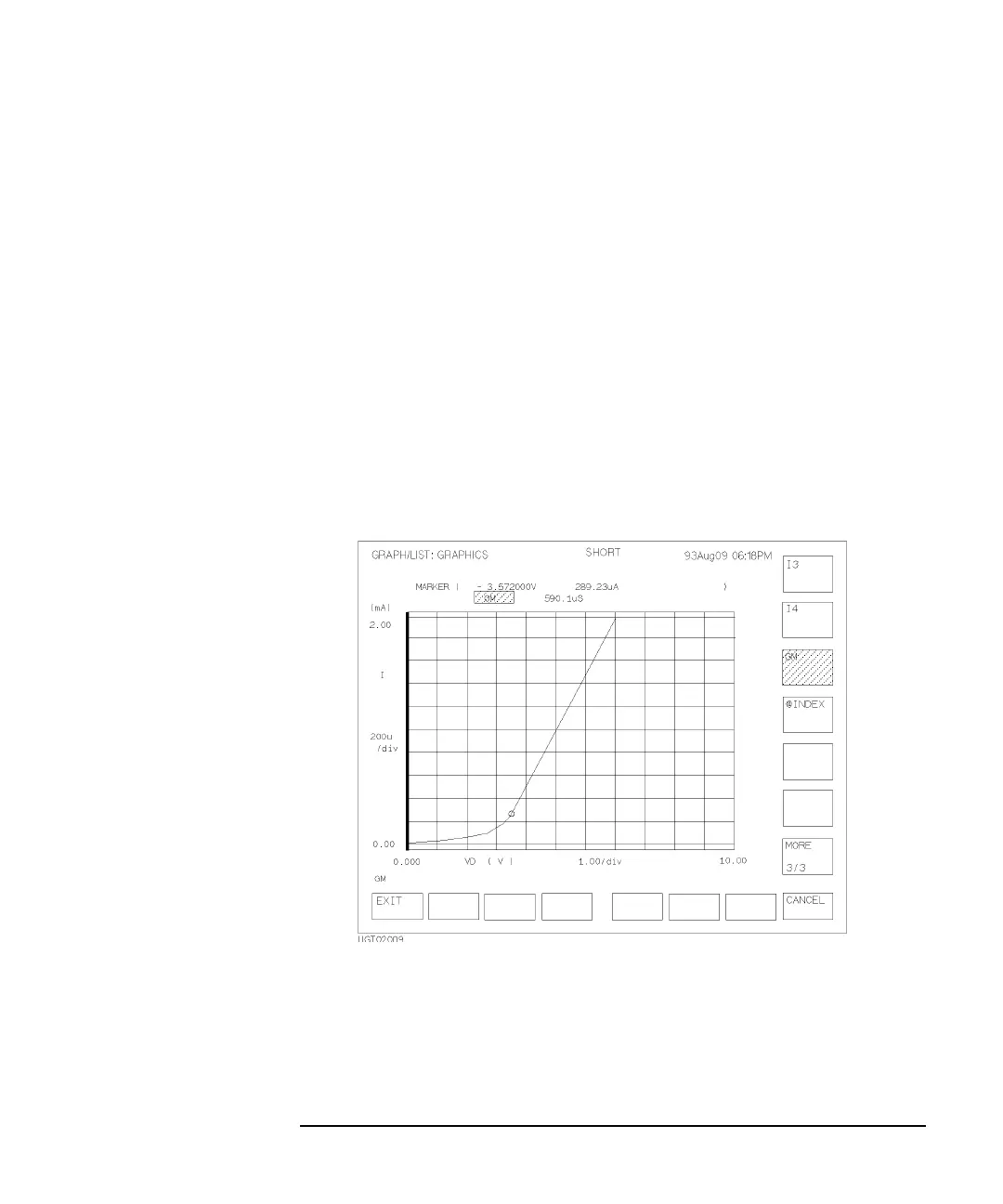

The following figure shows an example setup to change the data variable to be
displayed.
To Next Page
