Agilent 4155B/4156B User’s Guide Vol.2, Edition 5 4-57
Making a Measurement
Stress Force
To Set up dc Output
1. Press Stress key in the PAGE CONTROL key group. Confirm that the following
is set on the STRESS: CHANNEL DEFINITION screen for the units that you
want to set up for dc stress:
• V or I is set in the MODE field.
• SYNC is set in the FCTN field.
2. Select STRESS SETUP primary softkey.
3. In the SOURCE field for the desired unit in the CONSTANT area, enter the
desired dc stress value.
4. In the COMPLIANCE field in the CONSTANT area, enter the compliance
value.
The non-stress (NSYNC) constant units also appear in the CONSTANT area. You
can set SOURCE and COMPLIANCE values for these units the same way as you
set the dc stress units.
To set other areas of the STRESS: STRESS SETUP screen, see “To Set up Stress
Condition/Timing” on page 4-53.
To modify the UNIT, NAME, and MODE fields
Modify the UNIT, NAME, and MODE fields on the STRESS: CHANNEL
DEFINITION screen.
Example

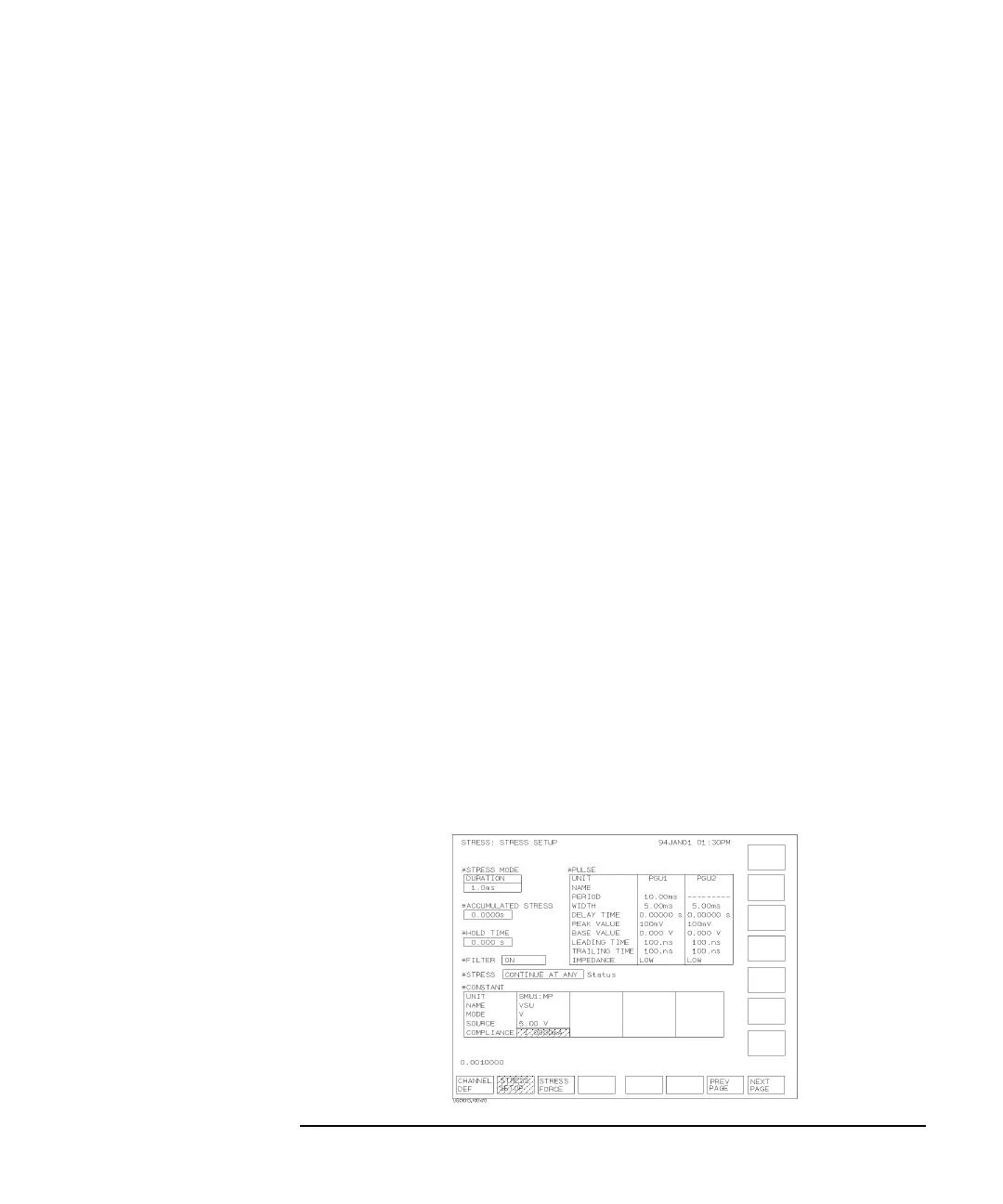

The following figure shows an example setup to set source (SMU1) to 5.00 V and
compliance (SMU1) to 1.00 mA.
