6-40 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Screen Organization
DISPLAY Screen Group

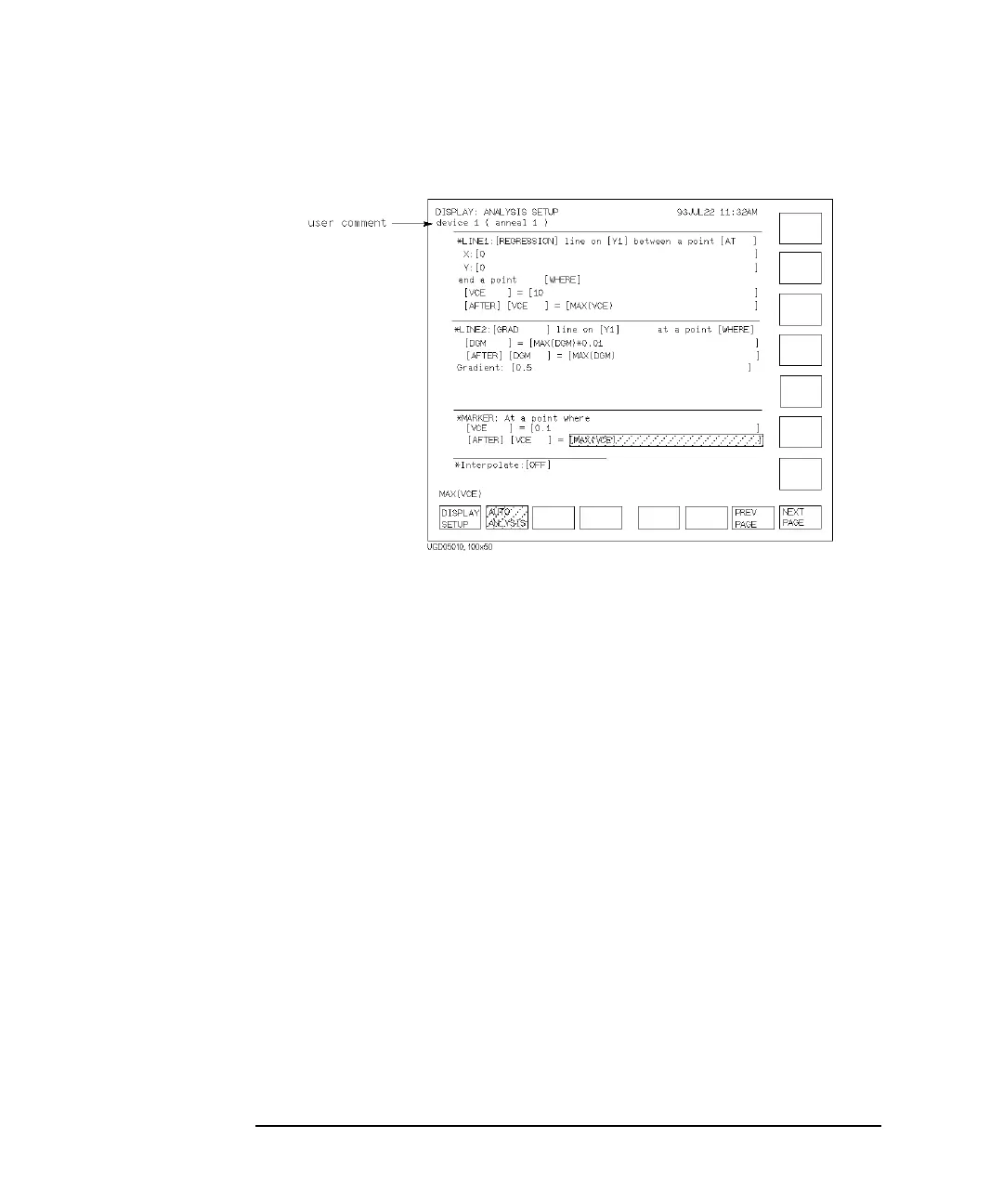

DISPLAY: ANALYSIS SETUP screen
On the "DISPLAY: ANALYSIS SETUP" screen, you set up the automatic analysis
function. When a measurement finishes, the function automatically draws lines, a
marker, or both as specified on this screen.
You can set up two lines and one marker for the automatic analysis function. In the
LINE1 and LINE2 fields, you can set up the lines to be drawn. In the MARKER
field, you set up the marker.
For the automatic analysis function and the manual analysis function, four line
modes can be used:
• Normal mode: drawing a line between any two points.
• Grad mode: drawing a line through any point with a specified gradient.
• Tangent mode: drawing a tangent to a measurement point.
• Regression mode: drawing a regression line for the area specified by any two
points.
The following explains how to set up the lines and marker. For details about line
modes, refer to “Line Drawing” in Chapter 7.
User Comment
In this field, you can enter a desired comment. This comment is also displayed in the
CHANNELS, MEASURE, DISPLAY, and GRAPH/LIST screen groups.
To Next Page
