2-22 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Measurement Mode
Sampling Measurement Mode
Source Output Sequence and Time Origin
Source unit output sequence and the time origin depends on the setup value of the
OUTPUT SEQUENCE MODE OF SAMPLING field in the MEASURE: OUTPUT
SEQUENCE screen. The following two modes are available for the field.
• SIMULTANEOUS mode

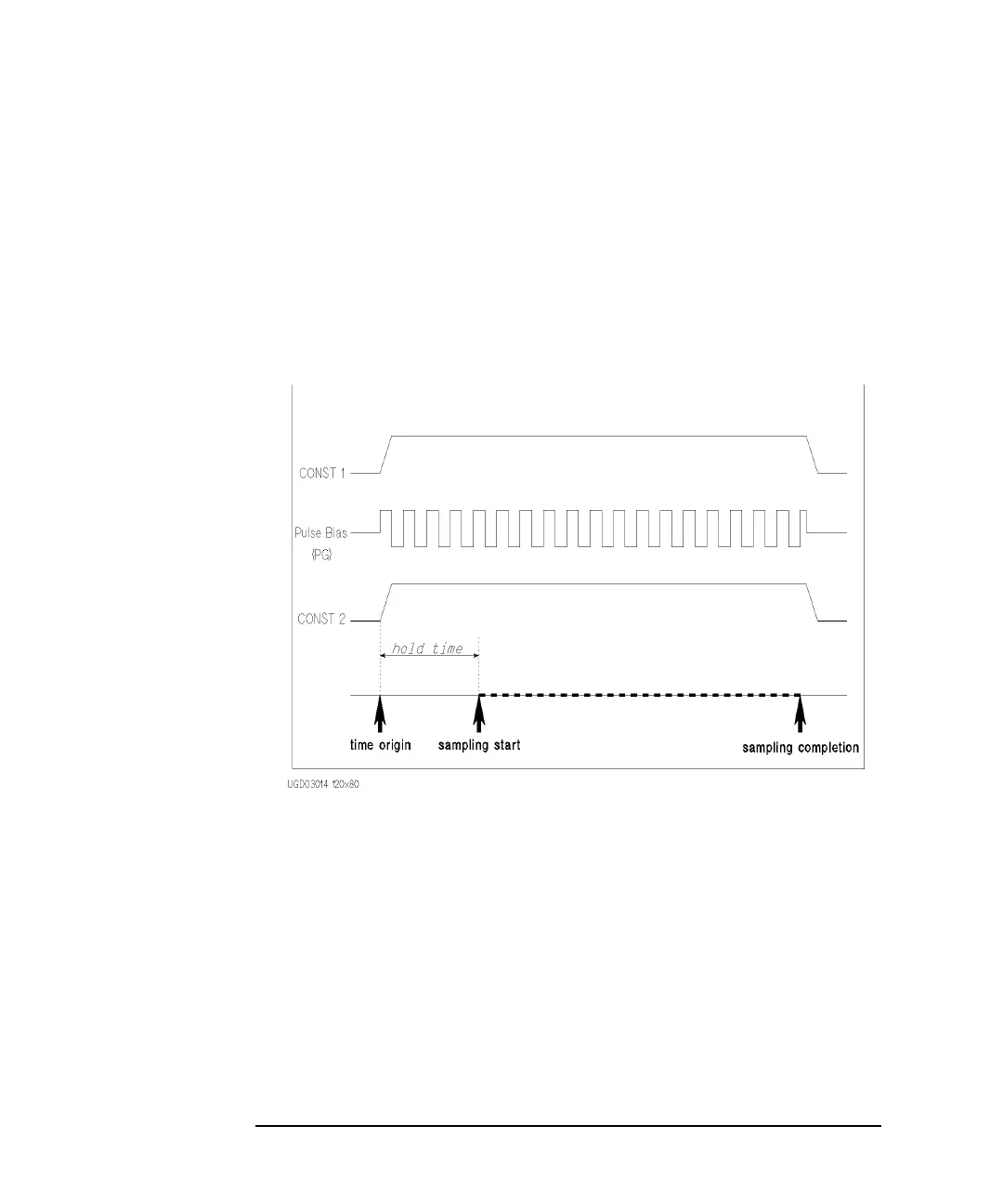

All source unit starts output at same timing. This timing is defined as the Time
Origin. See figure below.
