Agilent 4155B/4156B User’s Guide Vol.2, Edition 5 6-85
Screen Organization
Screen Operation
Screen Operation
This section explains how to fill in the entry fields on a screen, and the function of
the blue, green and Edit front-panel keys.
The setup screens have a fill-in-the-blank format for entering parameters. For

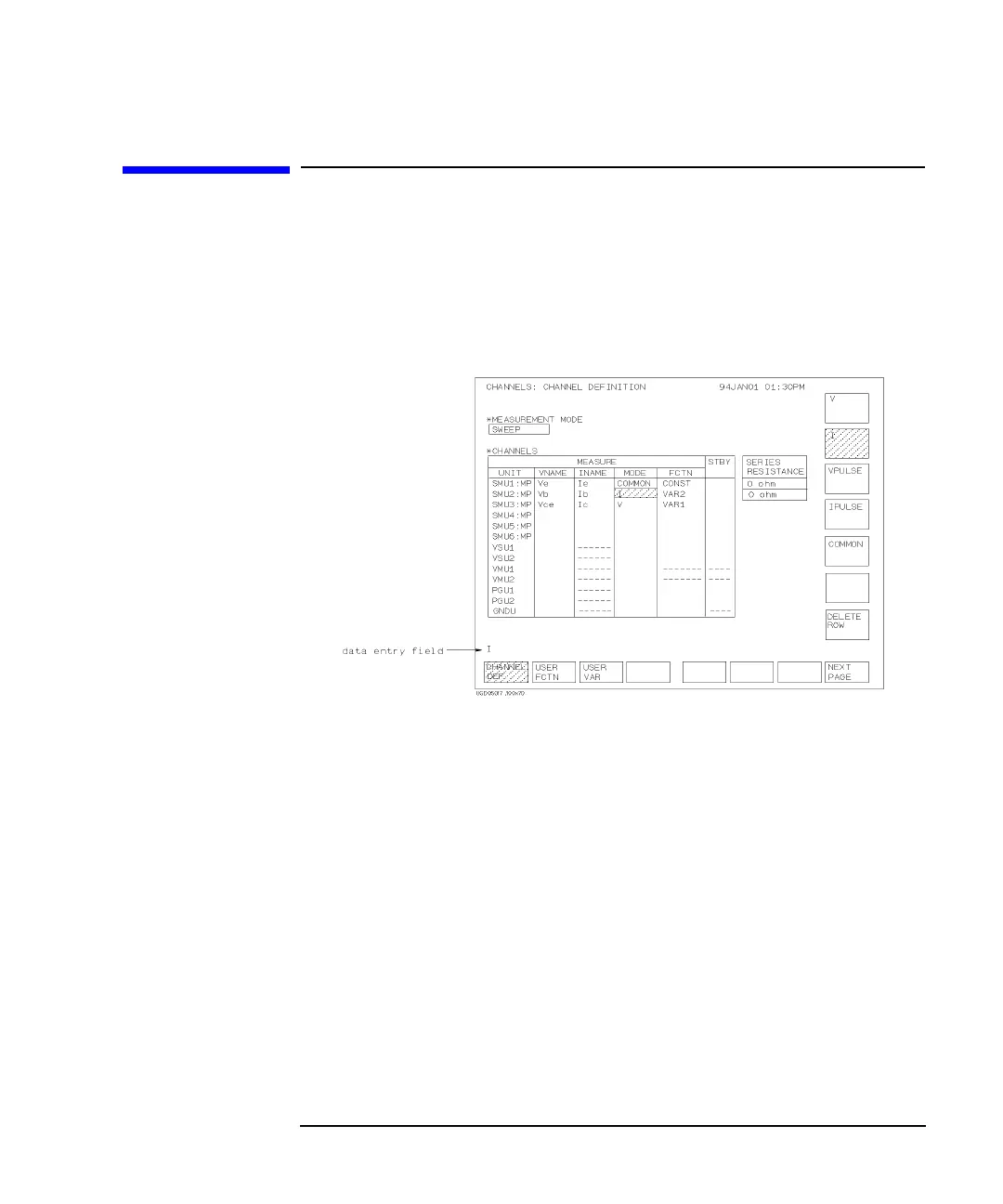

example, to use SMU2 as a current source, you move the pointer to MODE field of
SMU2, then select I secondary softkey as follows:
Data Input or Edit
When you move the pointer to a field on a setup screen, you can fill in the field by
entering characters or selecting a softkey. Softkeys related to the field appear when
you move the pointer to the field. The 4155B/4156B has three types of fields. The
following describes the methods for entering or editing input data of these field
types:
