6-32 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Screen Organization
MEASURE Screen Group

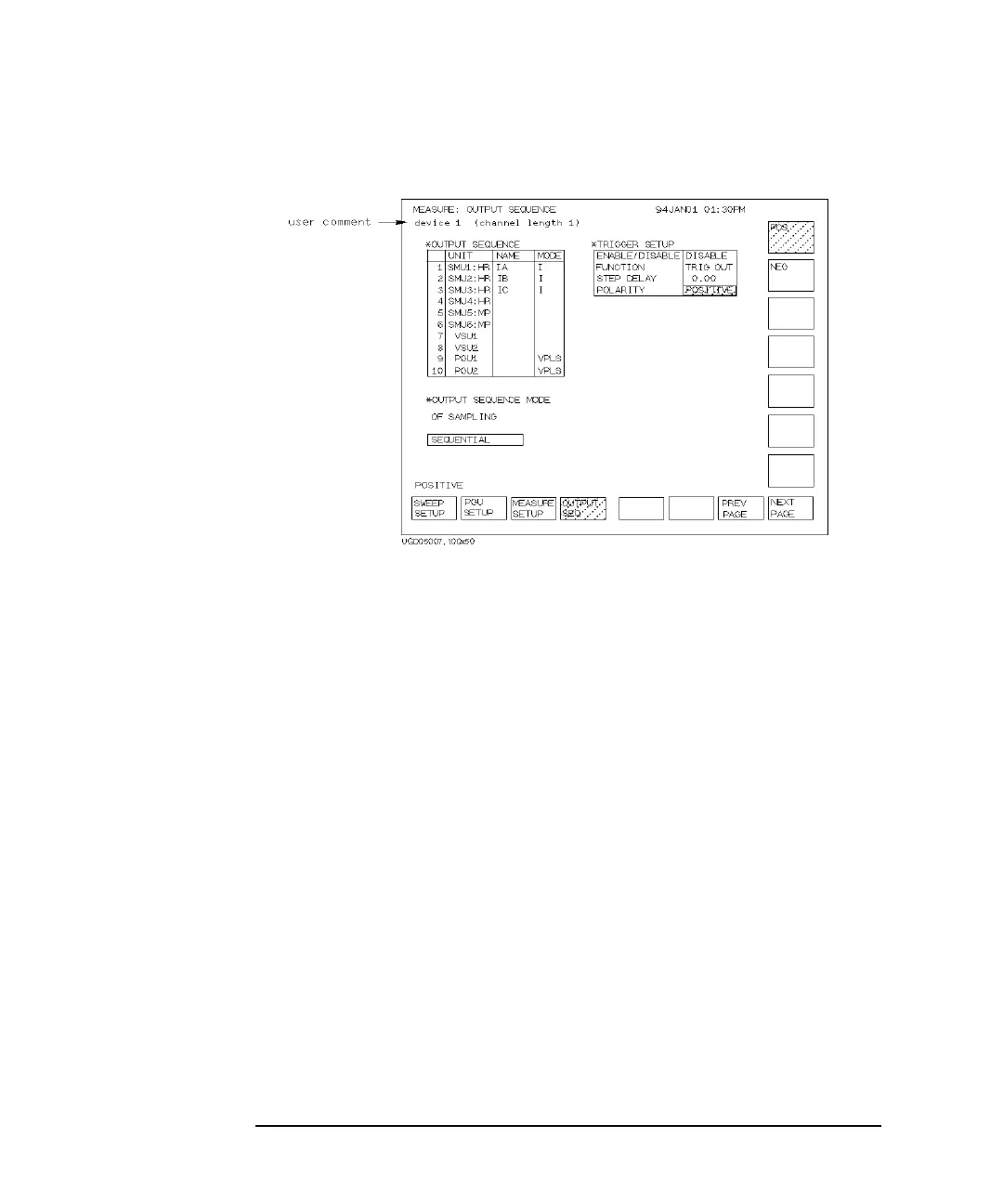

MEASURE: OUTPUT SEQUENCE screen
On this screen, you set the output sequence and triggering parameters for
measurement state.
The output sequence set on this screen is also used when the state changes from idle
state to stress force state.
For trigger setup for stress force state, see “Stress Output Channels” in Chapter 3.
User Comment
In this field, you can enter a desired comment, which is also displayed in the
CHANNELS, MEASURE, DISPLAY, and GRAPH/LIST screen groups.
OUTPUT SEQUENCE
In the UNIT column, allowable units are shown in output sequence order. Only
output units are shown, so VMU and GNDU are not shown. In the NAME and
MODE fields, the output names and mode that you set up on the CHANNELS:
CHANNEL DEFINITION screen are shown.
To change the output order of the units, enter unit names in desired order by
selecting secondary softkeys.
For details about default sequence, see “Sequential Mode” in Chapter 3.
To Next Page
