5-8 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Analyzing Measurement Results
Manual Analysis
To Display or Move Cursor
1. Select MARKER/CURSOR primary softkey.
2. Set CURSOR secondary softkey to SHORT or LONG. Short or long cursor and
cursor coordinates are displayed. Selecting CURSOR secondary softkey toggles
as follows:
OFF ® SHORT ® LONG ® OFF
3. Move the cursor by using arrow keys of the MARKER/CURSOR key group.
The CURSOR coordinate fields indicate the location of cursor. The first, second, and
third fields are X, Y1, and Y2 coordinates, respectively.
To move cursor diagonally
Press two adjacent arrow keys of the MARKER/CURSOR key group
simultaneously.
To turn off cursor
Set CURSOR secondary softkey to OFF.
To move cursor fast
Press arrow keys and Fast key of the MARKER/CURSOR key group
simultaneously.
Example

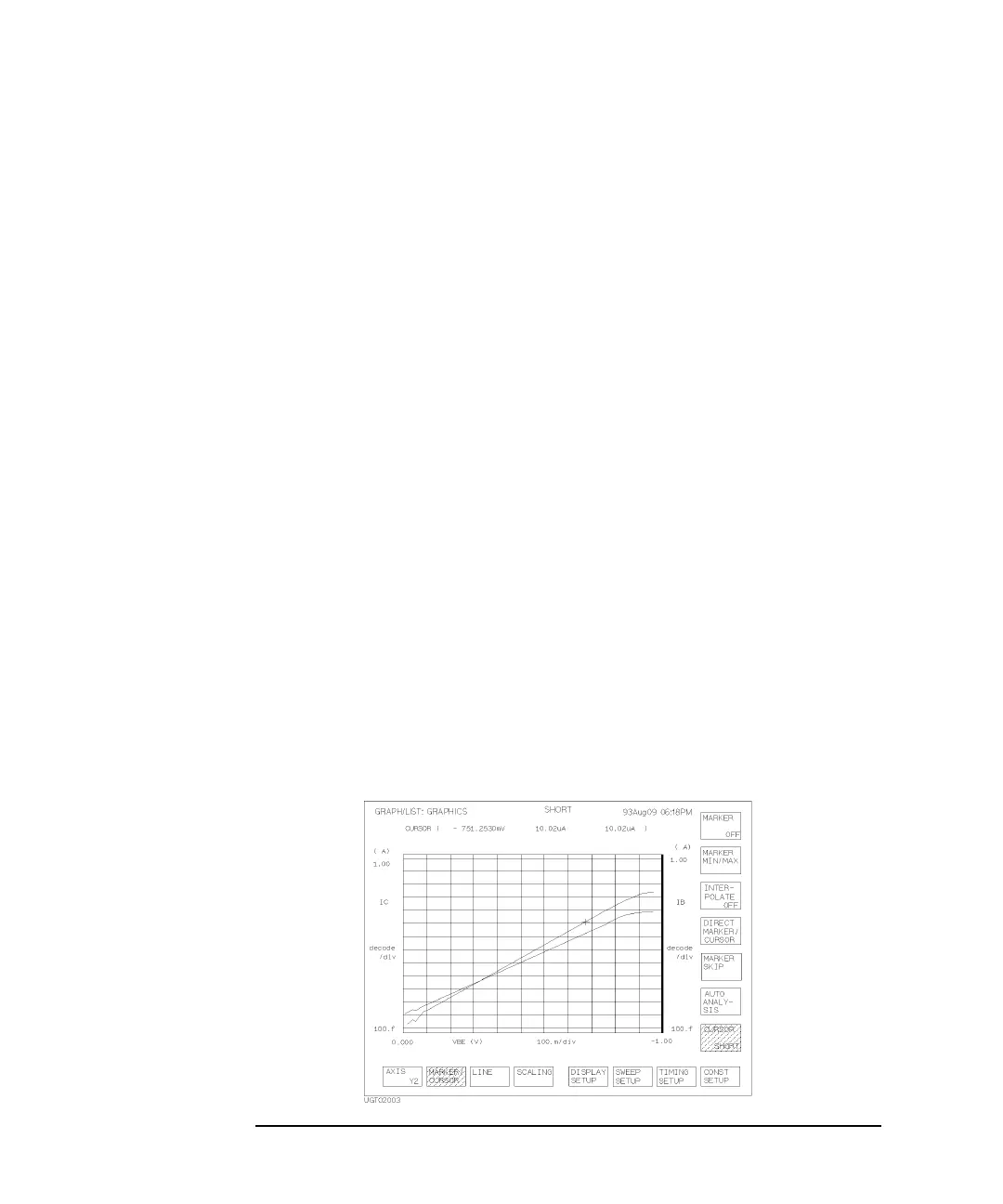

The following figure shows an example to display a short cursor.
