Agilent 4155B/4156B User’s Guide Vol.2, Edition 5 6-47
Screen Organization
GRAPH/LIST Screen Group
GRAPH/LIST: GRAPHICS screen

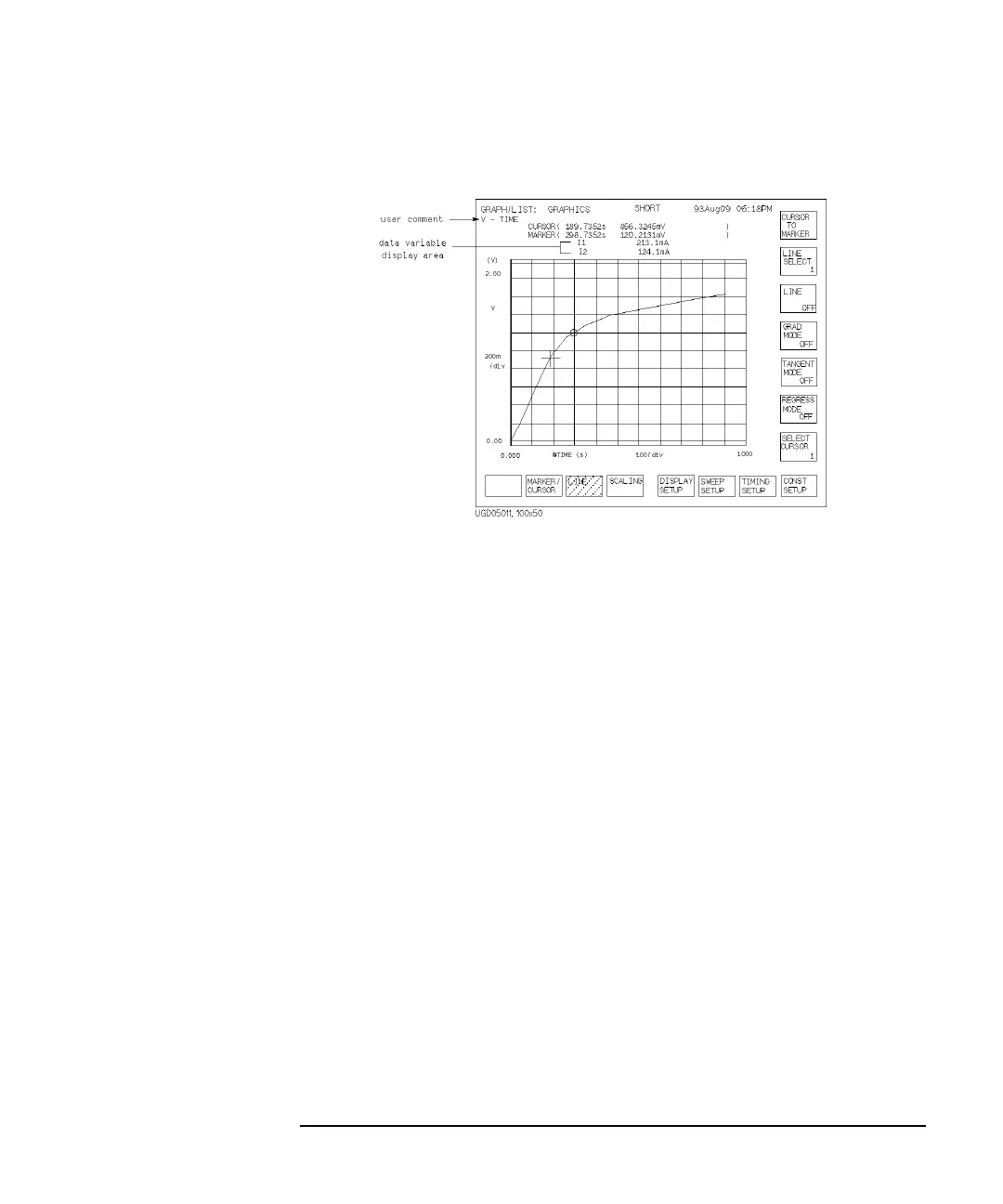

On the "GRAPH/LIST: GRAPHICS" screen, measurement results are displayed,
and you can analyze the measurement results graphically.
User Comment
In this field, you can enter a desired comment. This comment is also displayed in the
CHANNELS, MEASURE, DISPLAY, and GRAPH/LIST screen groups.
Cursor/marker indicator
In these fields, the coordinate values of the cursor and marker locations are
displayed. If cursor or marker is not displayed, these fields are blank. The three
fields are for X, Y1, and Y2 coordinate values, respectively.
Data variable display
This area displays the numerical value of up to two variables that you set up on
DISPLAY: DISPLAY SETUP screen. These are values at the marker position.
Plotting area
In this area, measurement curves are drawn according to measurement results.
You can analyze measurement results by using lines or marker in this area. If you
use lines, the X and Y intercept points and gradient are displayed.
To Next Page
