6-38 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Screen Organization
DISPLAY Screen Group

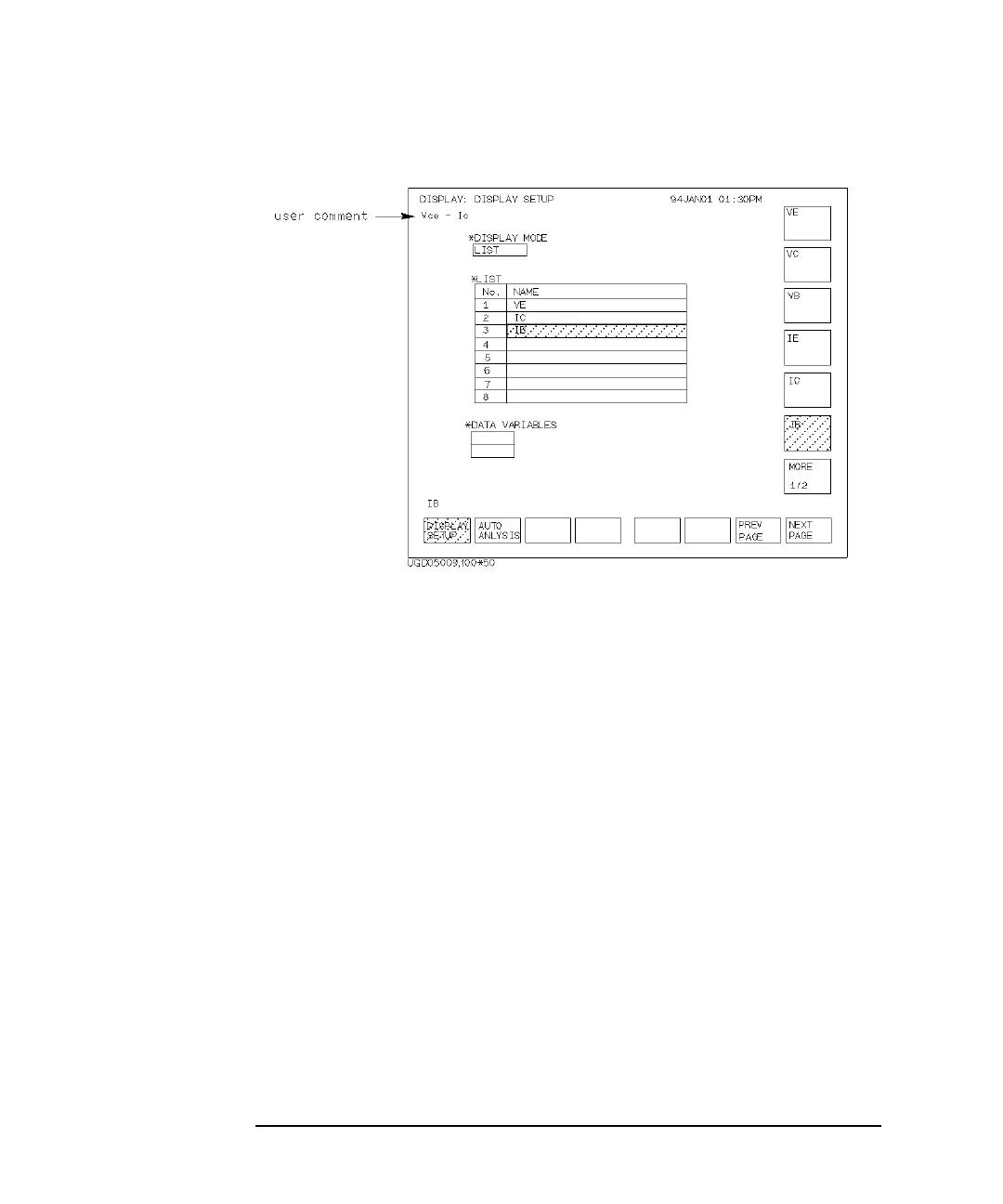

DISPLAY: DISPLAY SETUP screen for list results
On the "DISPLAY: DISPLAY SETUP" screen for list results, you enter variable
names for which you want results to be displayed numerically. The measurement
channels are determined by the variable names that you set on this screen.
User Comment
In this field, you can enter a desired comment, which is also displayed in the
CHANNELS, MEASURE, DISPLAY, and GRAPH/LIST screen groups.
DISPLAY MODE
This field specifies display mode. If present mode is graphics mode, select LIST
softkey to change to list mode. LIST table is displayed.
LIST
NAME fields of LIST area specify variables that you want to display on LIST
screen. You can enter the desired variable names. Entries in this area and data
variable area determine which channels will actually make measurements. You can
enter up to eight variable names. When the pointer is located in NAME field, you
can select desired variable names in secondary softkey area.
