Screen Organization
STRESS Screen Group

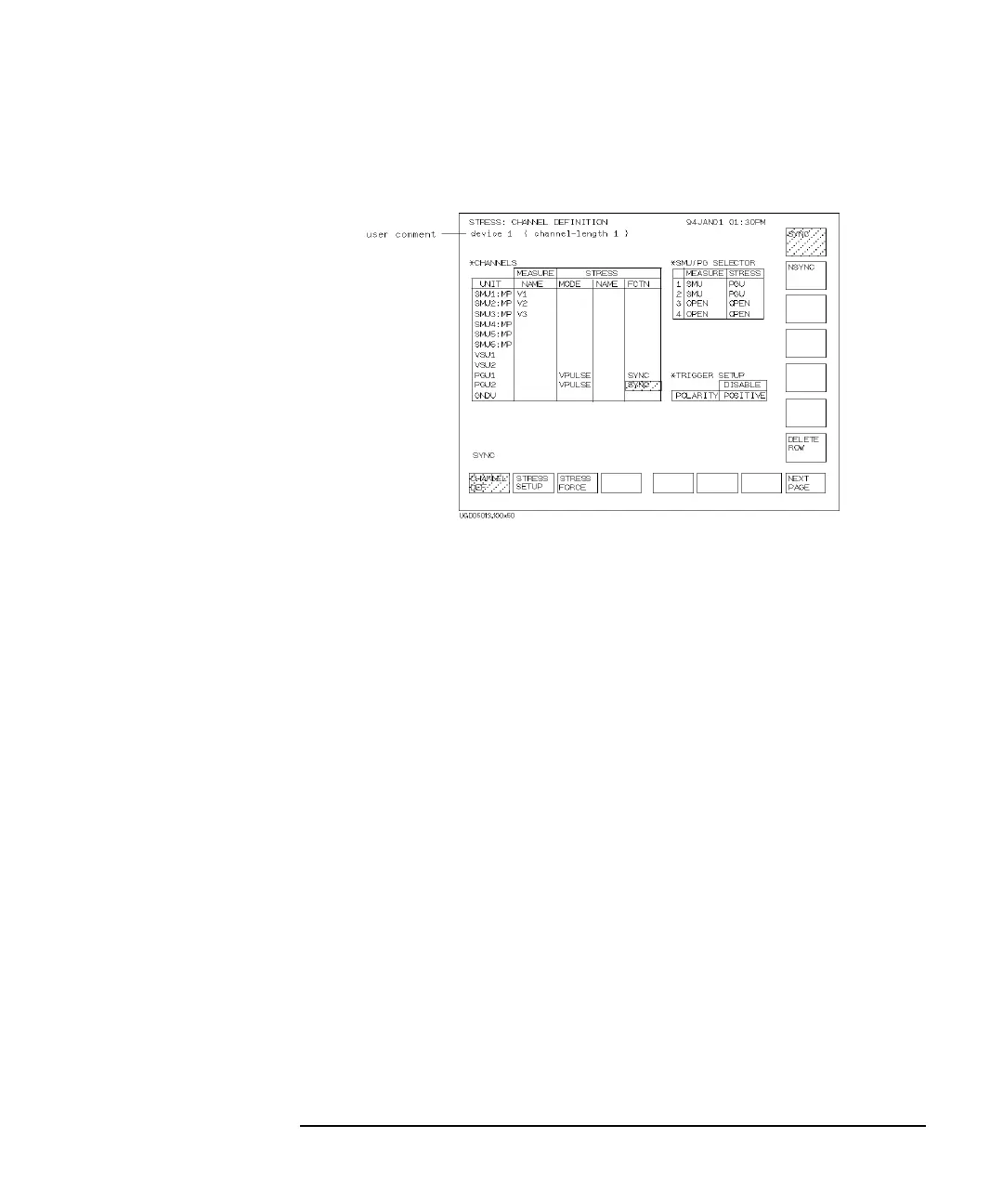

STRESS: CHANNEL DEFINITION screen
On the "STRESS: CHANNEL DEFINITION" screen, you define how to use the
channels for stress force, how to control the SMU/PG selector, and trigger usage in
the stress force state.
User Comment
In this field, you can enter a desired comment. The comment you enter here is also
displayed on the other STRESS screens.
CHANNELS
CHANNELS table defines the mode, name, and function for the stress state.
• UNIT
This column lists all the source units that are installed in the 4155B/4156B.
• NAME of MEASURE
Source name that was defined for the measurement state (on CHANNELS:
CHANNEL DEFINITION screen). For example, if the unit is set to V source
mode, the specified VNAME is shown here.
• MODE of STRESS
Output mode for each unit that will be used during stress force state. In the
MODE column, allowable modes are shown in the secondary softkey area as
follows, and you select a softkey to set an output mode.
To Next Page
