Agilent 4155B/4156B User’s Guide Vol.2, Edition 5 2-5
Measurement Mode
Sweep Measurement Mode

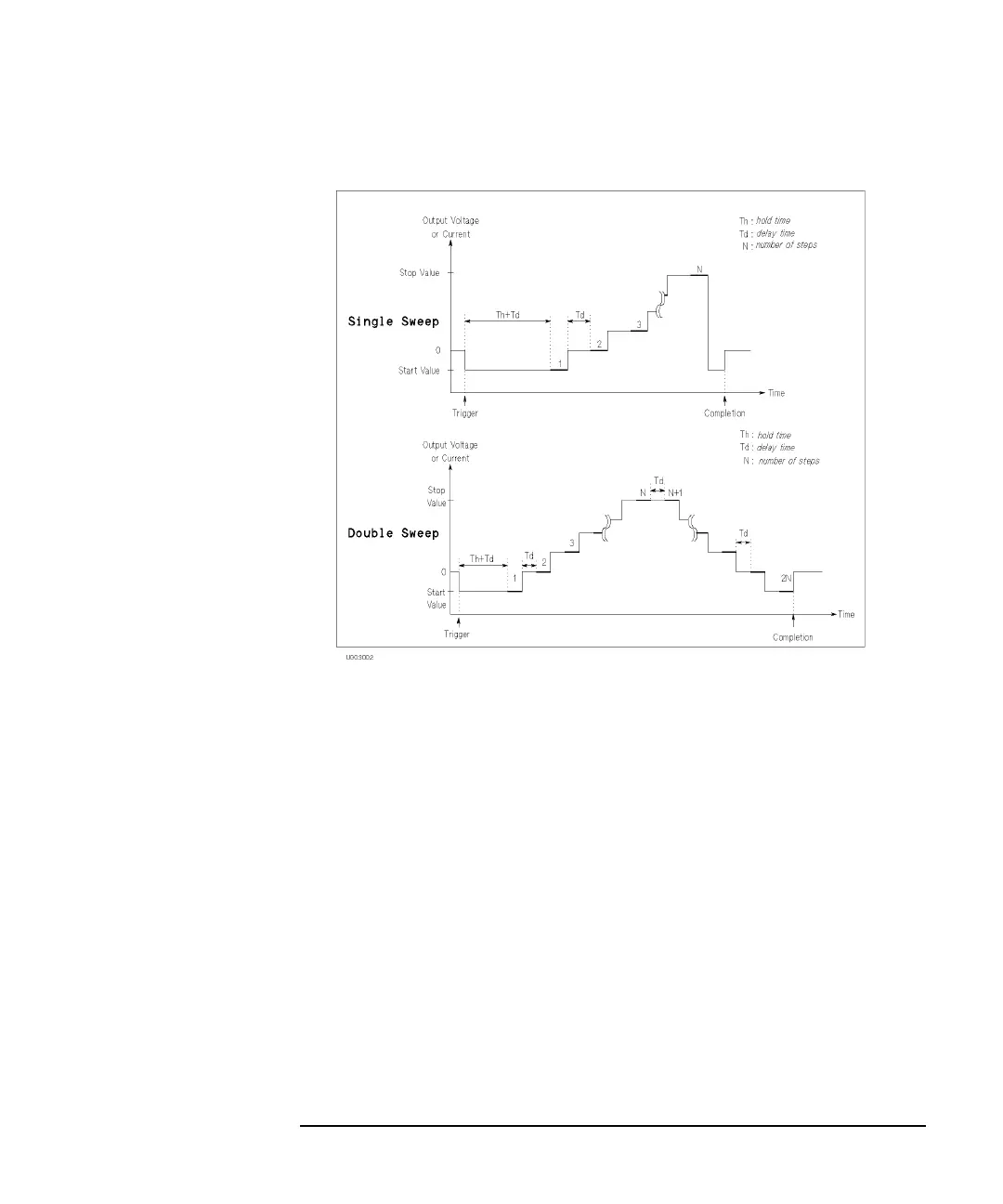

Figure 2-1 Basic Sweep Measurement
To set up basic sweep measurement, select VAR1 function for desired SMU or VSU
on CHANNELS: CHANNEL DEFINITION page.
Parameters
Also, specify the following parameters for VAR1 on MEASURE: SWEEP SETUP
page.
Parameter Description
sweep mode Single or double sweep.
linear/log Linear or logarithmic sweep. For logarithmic sweep, select the
number steps in one decade as follows:
LOG10 10 steps in one decade.
LOG25 25 steps in one decade.
LOG50 50 steps in one decade.
To Next Page
