G4208A User’s Guide 147
5 Maintenance and Repair
Firmware Updates
Upgrade from A.05.1x to B.xx
1 When the Agilent 1100/1200 series modules are on a firmware platform
A.05.09/1x, then update the modules to platform A.06.xx
2 Connect the Instant Pilot (with A.05.1x firmware) to one of the modules (if not
already done).
3 After boot, enter the Maintenance screen and press the Controller button.

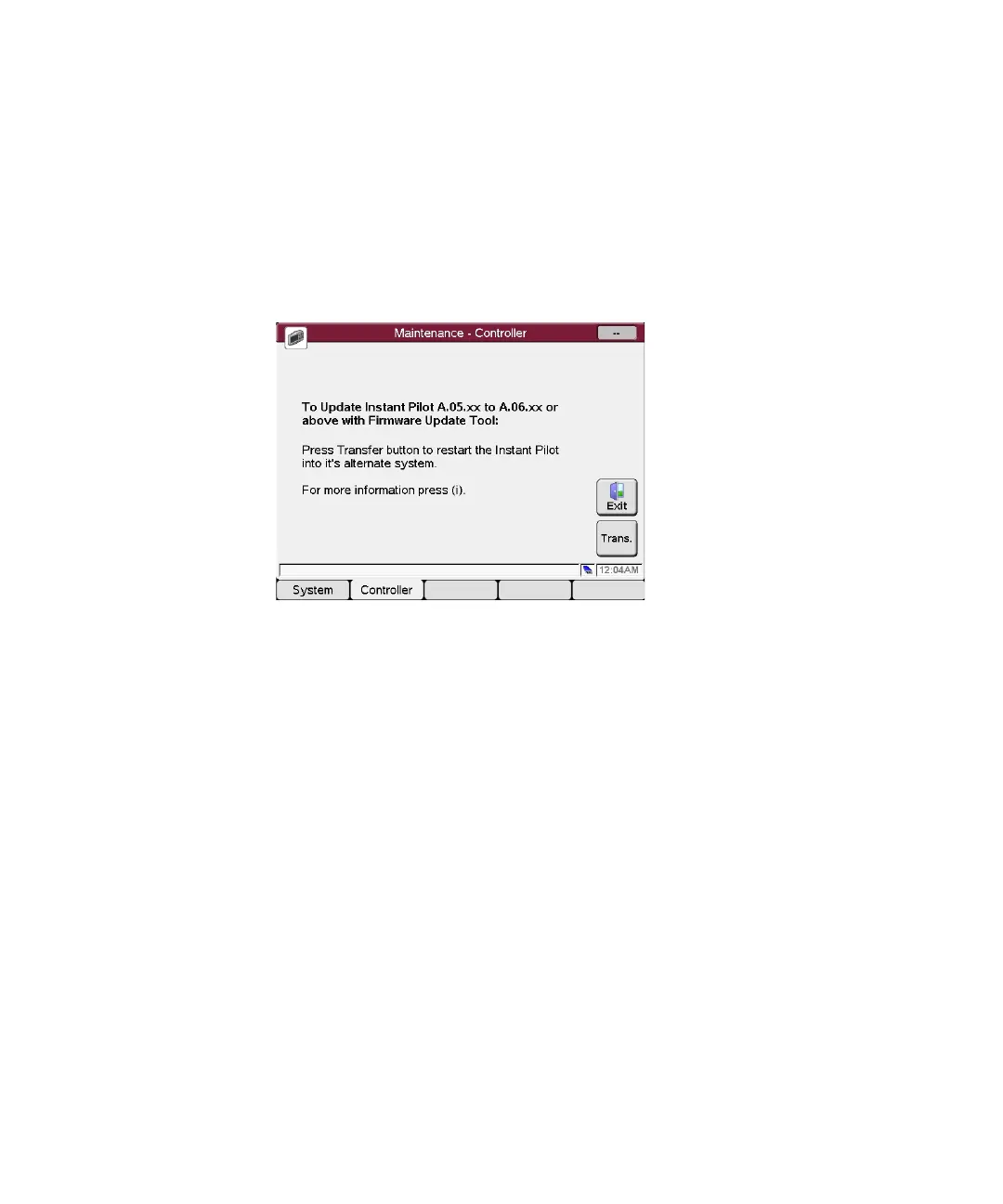

Figure 101 Update Information for firmware A.05.11
4 Press the Transfer button. The Instant Pilot will switch into resident mode
(black screen) and the Update Tool will list the Instant Pilot.
5 Select the Instant Pilot for update to the target firmware revision
6 Start the update.
7 When finished, the Instant Pilot boots in main mode and shows all modules of
the system in the Welcome screen.
8 Close the connection and the LAN/RS- 232 Update Tool 2.10.
