G4208A User’s Guide 155
5 Maintenance and Repair
Exchanging the CAN Cable
5 The release button [1] (shown in Figure 104 on page 155) may fall out during
the removal. Keep it.

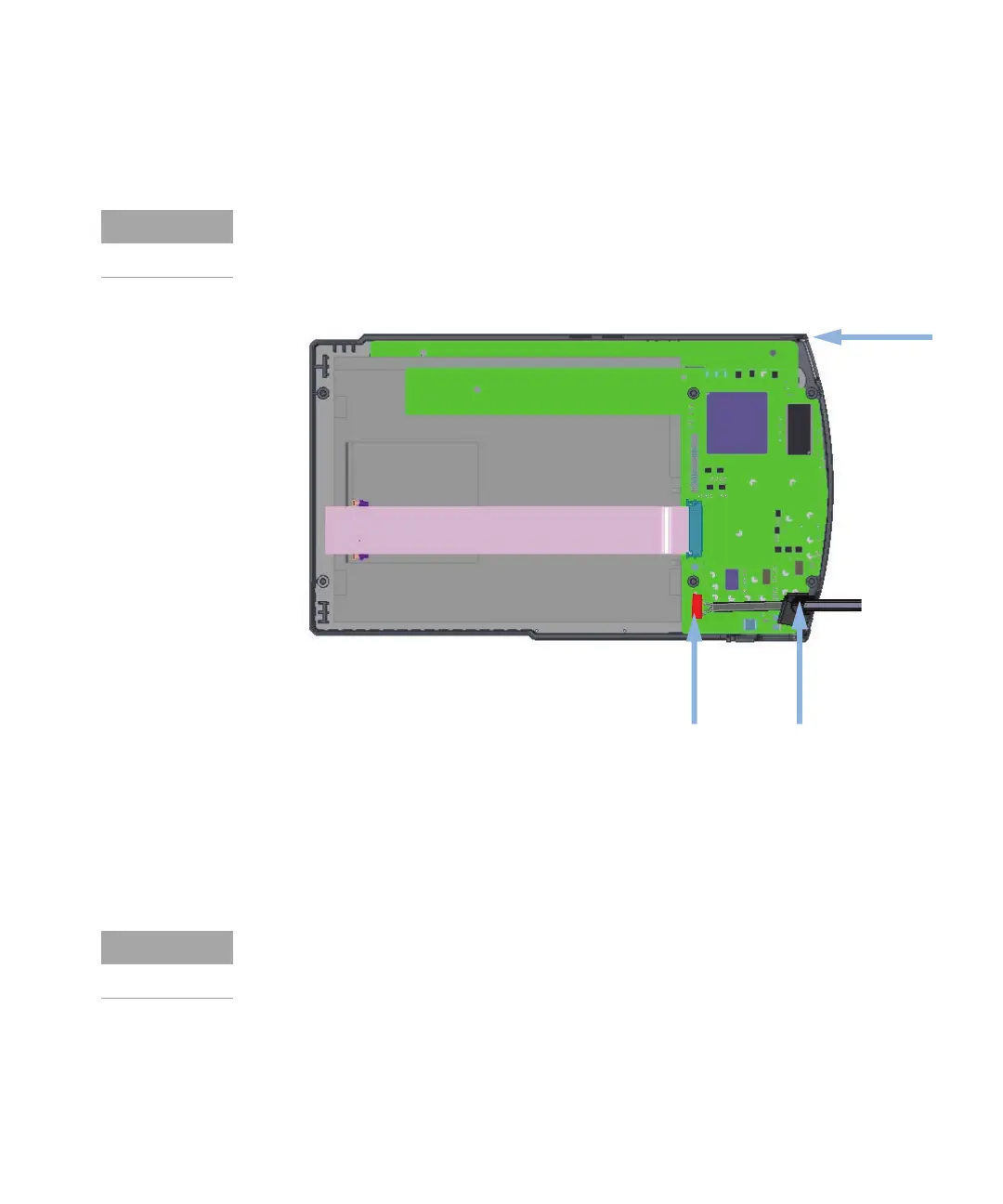

Figure 104 Rear Panel - location of cable, connector and release button
6 Unplug the CAN cable from it’s connector [2].
7 Plug the new CAN cable into the connector [2].
8 Fit the cable with the cable relief [3] in the front cover.
9 Place the release button into its location [1].
Step 5 and 9 are for the OLD rear panel design only. See information on “Adding
the Instant Pilot to an Agilent HPLC Module” on page 16. The new rear panel
does not have the release button.
Before you replace the rear panel, observe the release button mechanism at the
rear panel. The release button pin must fit into the recess on one end of the
connecting rod.
