Agilent Technologies InfinityLab LC Series User Guide

G4208A User’s Guide 156
5 Maintenance and Repair
Exchanging the CAN Cable
10 Carefully replace the rear panel and fit the release button pin into the recess
on one end of the connecting rod of the rear panel, see
Figure 105 on
page 156.

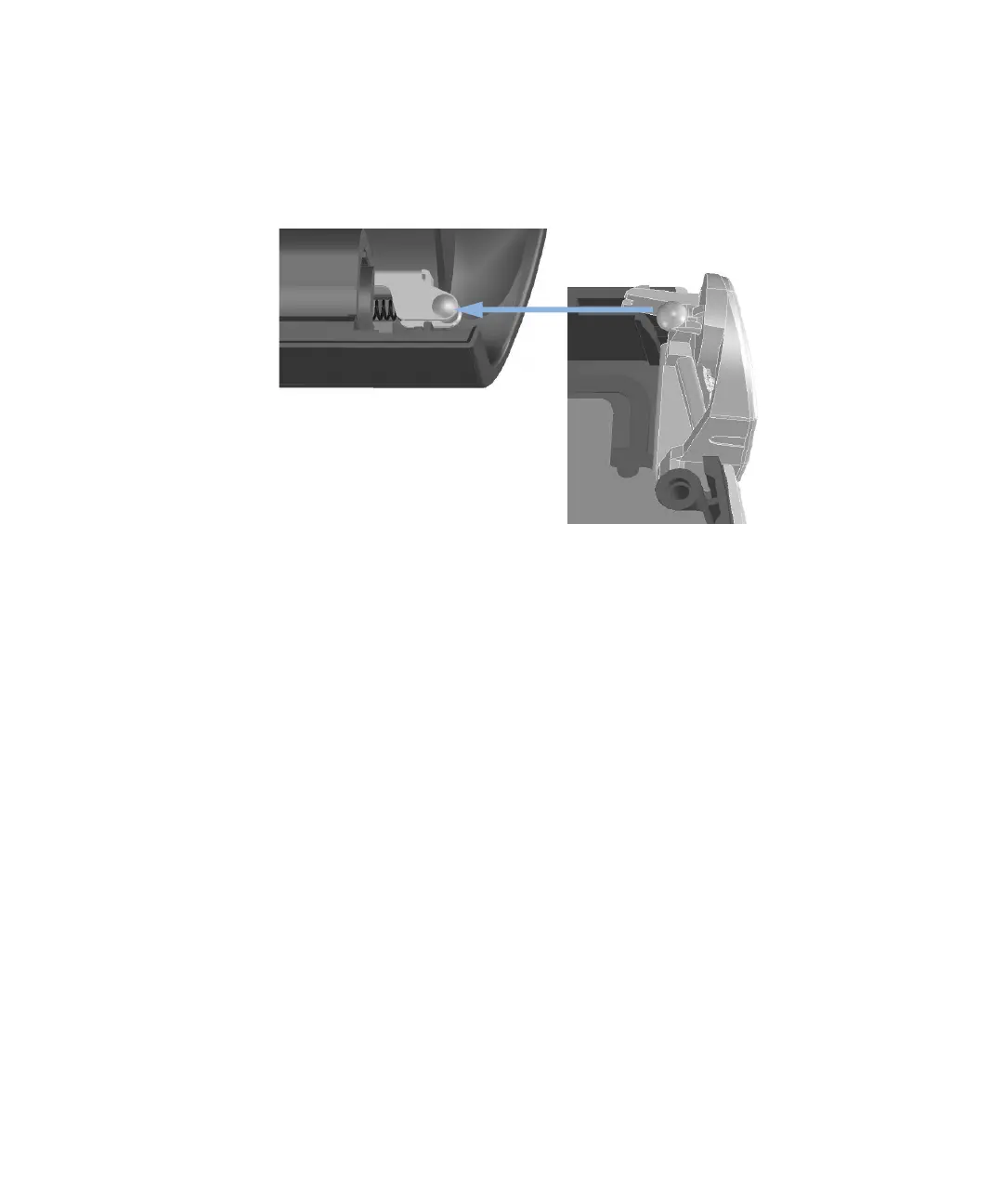

Figure 105 Pin of release button fits into the recess of the rod (OLD rear panel design)
11 Fix the rear panel screws.
release button
rear panel with recess in rod
