the oscilloscope. Snap the wide end of the cable guide in
place, being careful not to pinch the cable.
4 Connect the ground lead on each set of channels (each pod),
using a probe grabber. The ground lead improves signal
fidelity to the oscilloscope, ensuring accurate measurements.

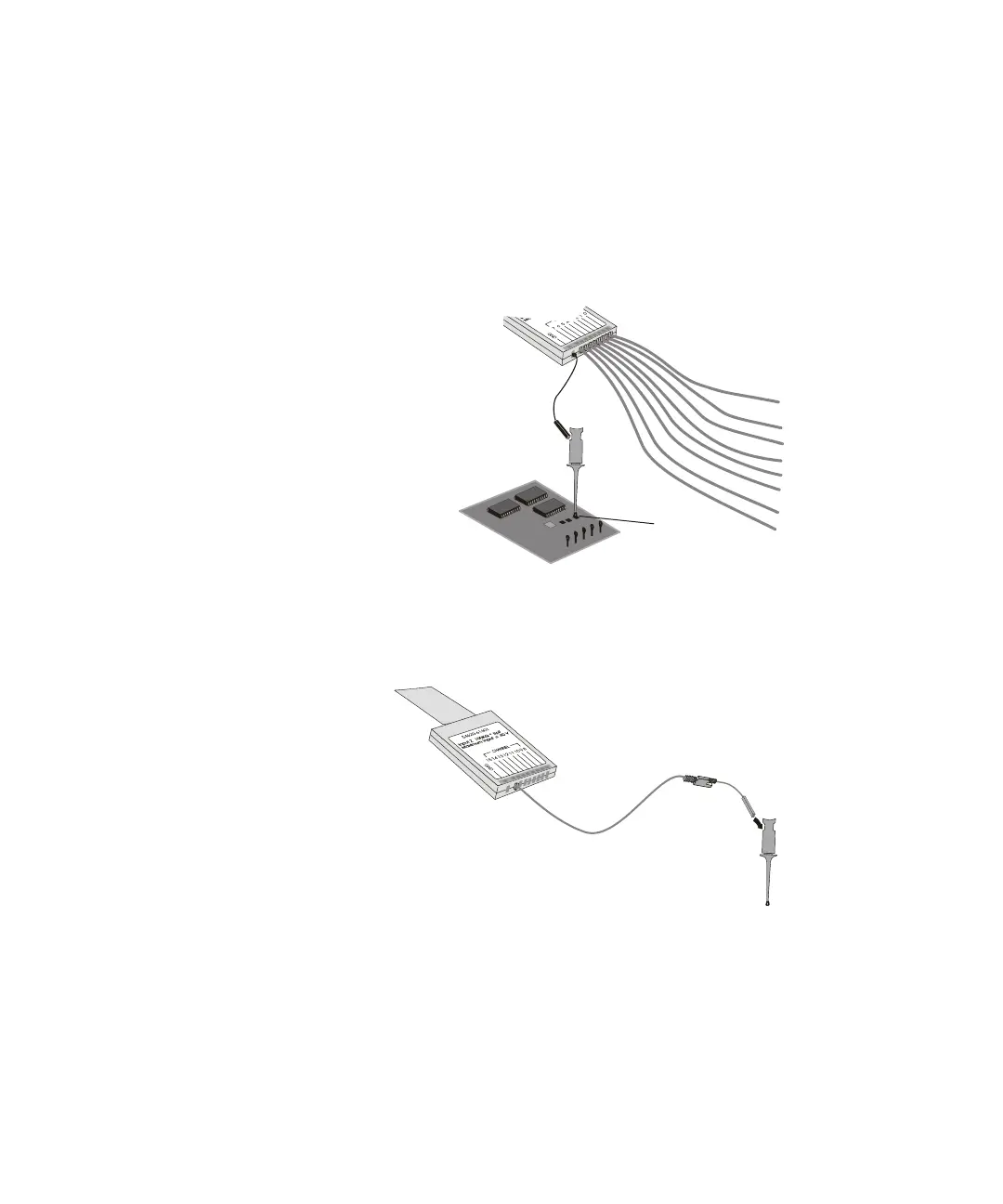

5 Connect a grabber to one of the probe leads. (Other probe
leads are omitted from the figure for clarity.)
Circuit
Ground
Channel
Pod Ground
Grabber
