282 6000 Series Oscilloscope User’s Guide
6 Displaying Data
To decode LIN data
1 Select the LIN serial decode mode:
a Press the Acquire key.
b Press the Serial Decode softkey.
c In the Serial Decode Menu, press the Mode softkey.
d Use the Entry knob (or repeatedly press and release the
Mode softkey) to select the LIN serial decode mode.
2 Choose whether to include the parity bits in the identifier
field.
a If you want to mask the upper two parity bits, ensure that
the box under the Show Parity softkey is not selected.
b If you want to include the parity bits in the identifier field,
ensure that the box under the Show Parity softkey is
selected.
NOTE
For LIN triggering setup see page 169.

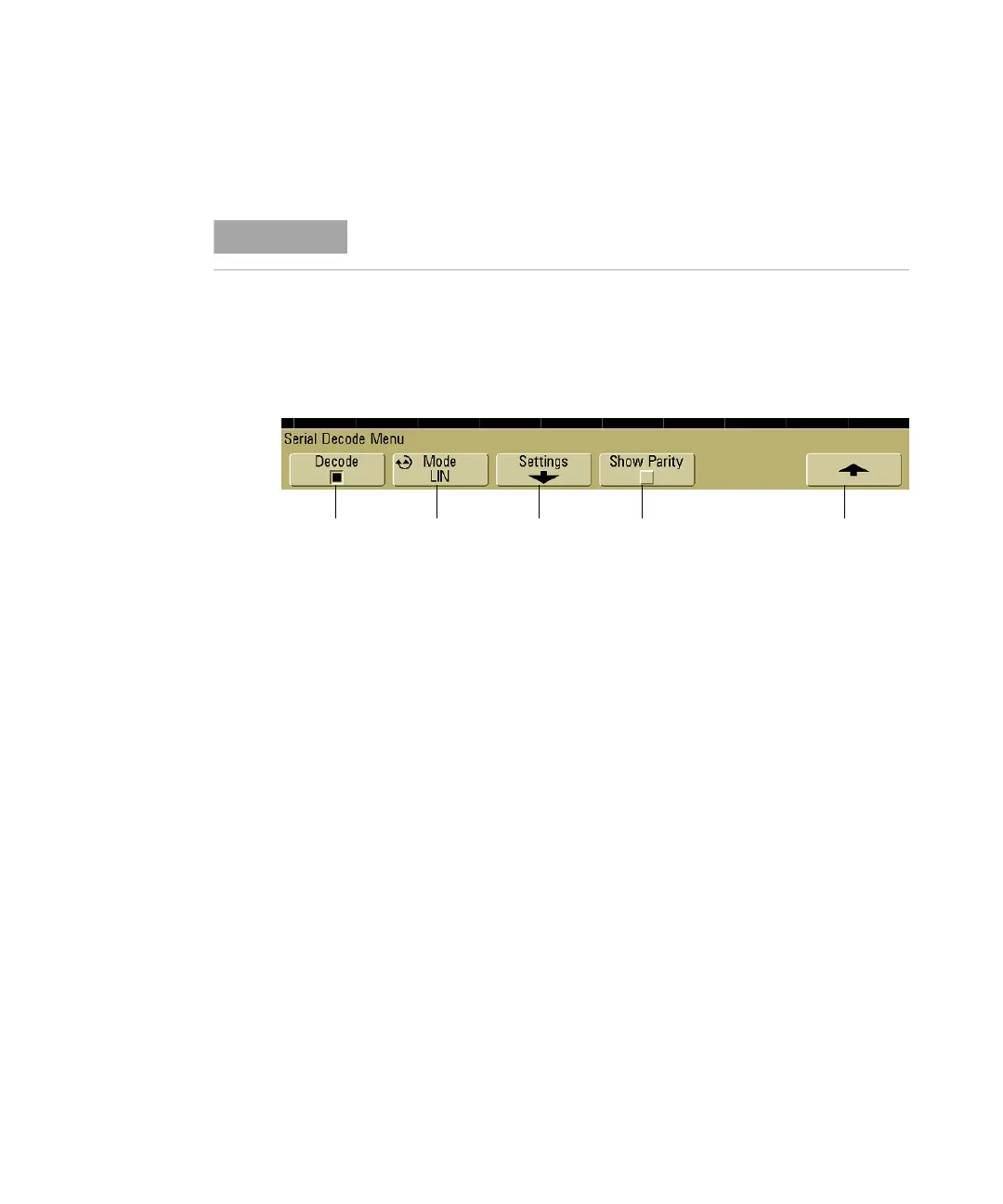

Display
decode
Decode
mode
Signal
setup menu
Return to
previous menu
Show
parity bits
To Next Page
