270 6000 Series Oscilloscope User’s Guide
6 Displaying Data
To decode SPI data
1 Select the SPI serial decode mode:
a Press the Acquire key.
b Press the Serial Decode softkey.
c In the Serial Decode Menu, press the Mode softkey.
d Use the Entry knob (or repeatedly press and release the
Mode softkey) to select the SPI serial decode mode.
NOTE
Because of oscilloscope hardware resource limitations, you cannot
decode SPI data while CAN or LIN triggering is selected.
NOTE
For SPI triggering setup see page 179.

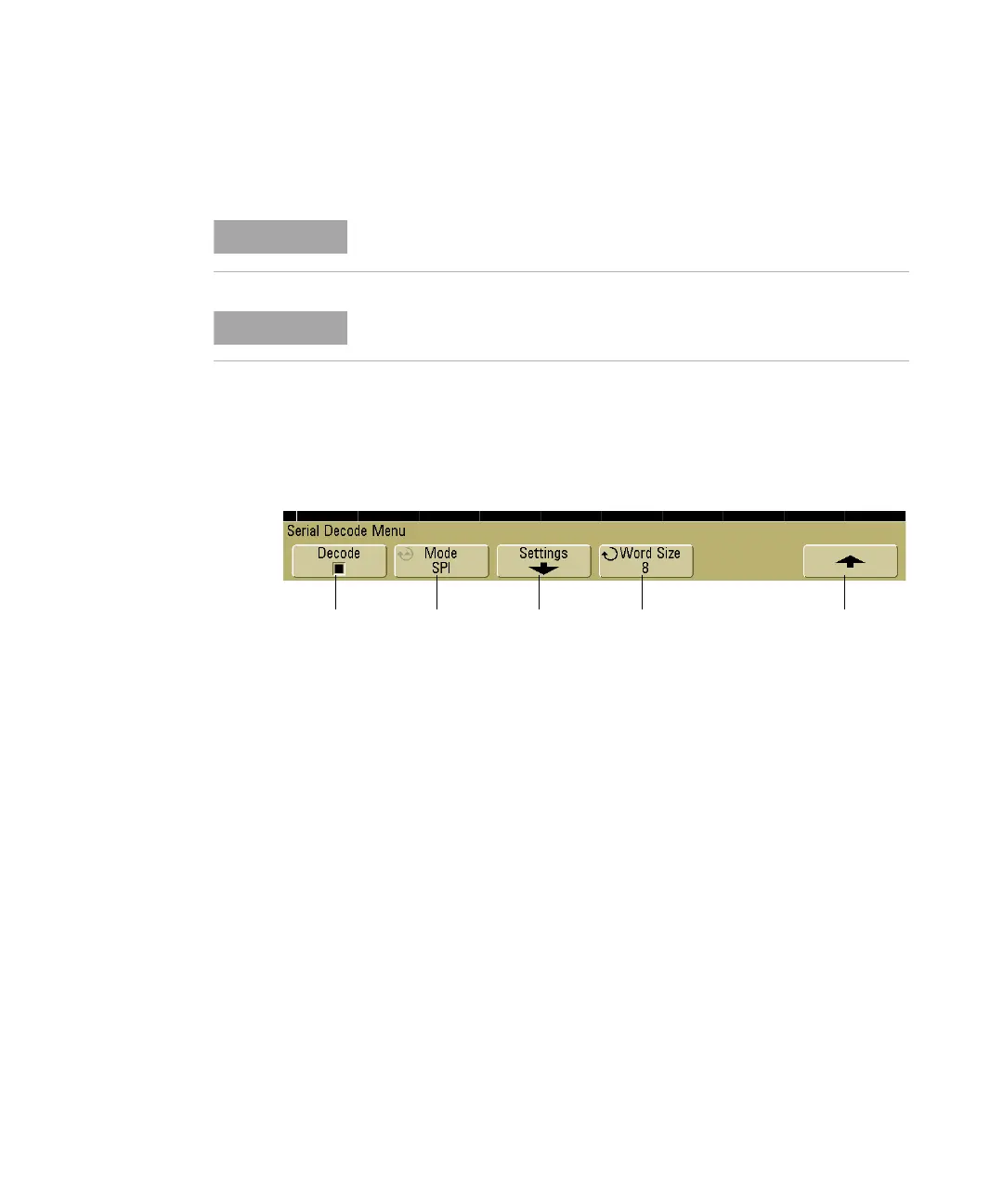

Display
decode
Decode
mode
Signal
setup menu
Return to
previous menu
SPI word
size
To Next Page
