Displaying Data 6
6000 Series Oscilloscope User’s Guide 297

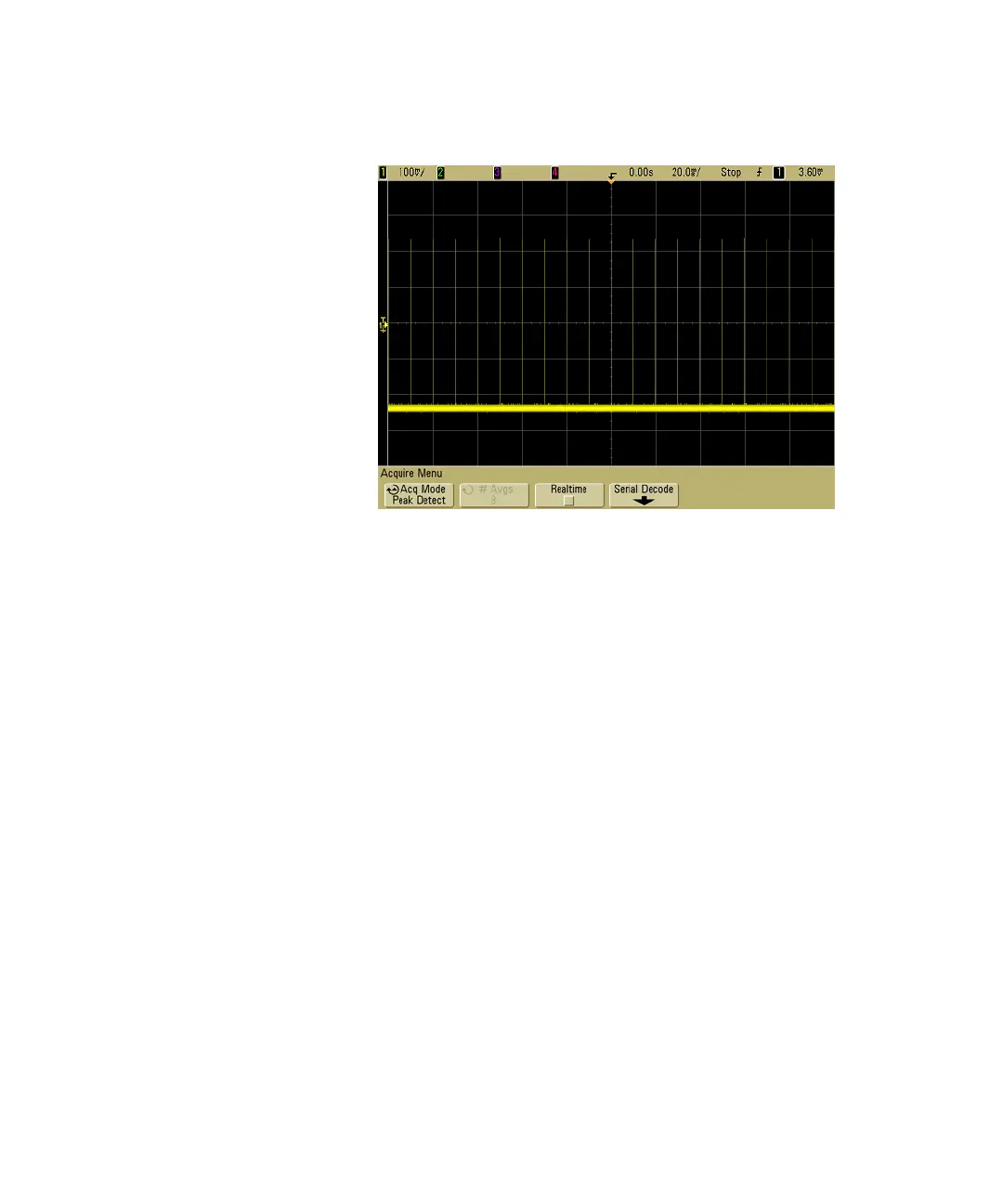

Figure 48 15 ns Narrow Pulse, 20 ms/div, Peak Detect Mode
Using peak detect mode to find a glitch
1 Connect a signal to the oscilloscope and obtain a stable
display.
2 To find the glitch, press the Acquire key, then, press the
Acq Mode softkey until Peak Detect is selected.
3 Press the Display key then press the
∞ Persist (infinite
persistence) softkey.
Infinite persistence updates the display with new
acquisitions but does not erase previous acquisitions. New
sample points are shown at normal intensity while previous
acquisitions are displayed in gray at lower intensity.
Waveform persistence is not kept beyond the display area
boundary.
Press the Clear Display softkey to erase previously acquired
points. The display will accumulate points until
∞ Persist is
turned off.
