Triggering the Oscilloscope 4
6000 Series Oscilloscope User’s Guide 167
To use Nth Edge Burst triggering

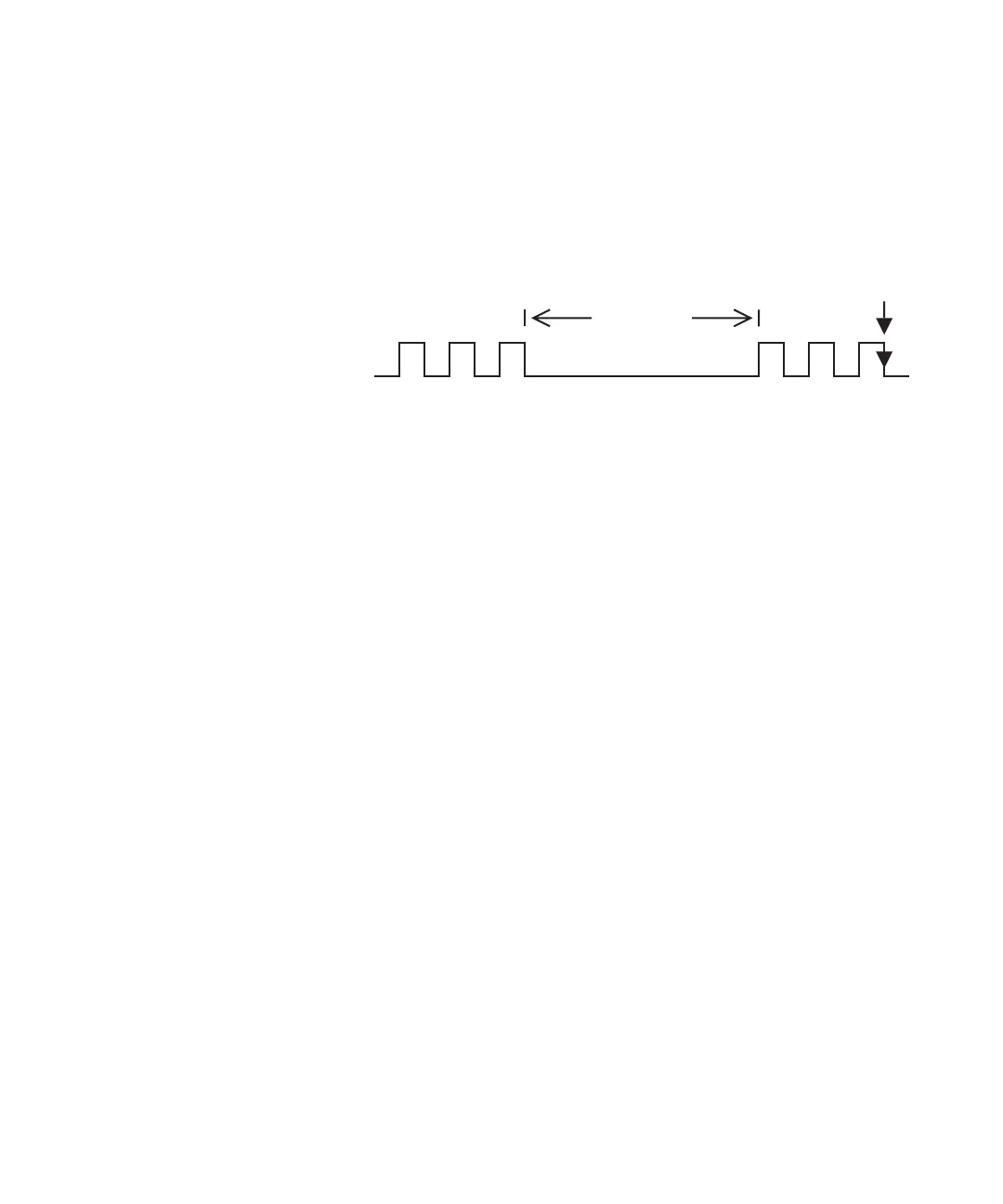

The Nth Edge Burst trigger lets you trigger on the Nth edge of a
burst that occurs after an idle time.
Nth Edge Burst trigger set up consists of selecting the source,
the slope of the edge, the idle time, and the number of the edge:
1 Press the More key in the Trigger section of the front panel,
rotate the Entry knob until Nth Edge Burst is displayed in the
Trigger softkey.
2 Press the Settings softkey to display the Nth Edge Burst
trigger menu.
Trigger
Idle Time
To Next Page
