266 6000 Series Oscilloscope User’s Guide
6 Displaying Data
To decode I
2
C data
To manually control Serial Decode on 6000L models start the
Remote Front Panel (see page 42) and select Waveform from the
Main Menu or press ctrl+A to access the oscilloscope’s Acquire
Menu.
1 Select the I
2
C serial decode mode:
a Press the Acquire key.
b Press the Serial Decode softkey.

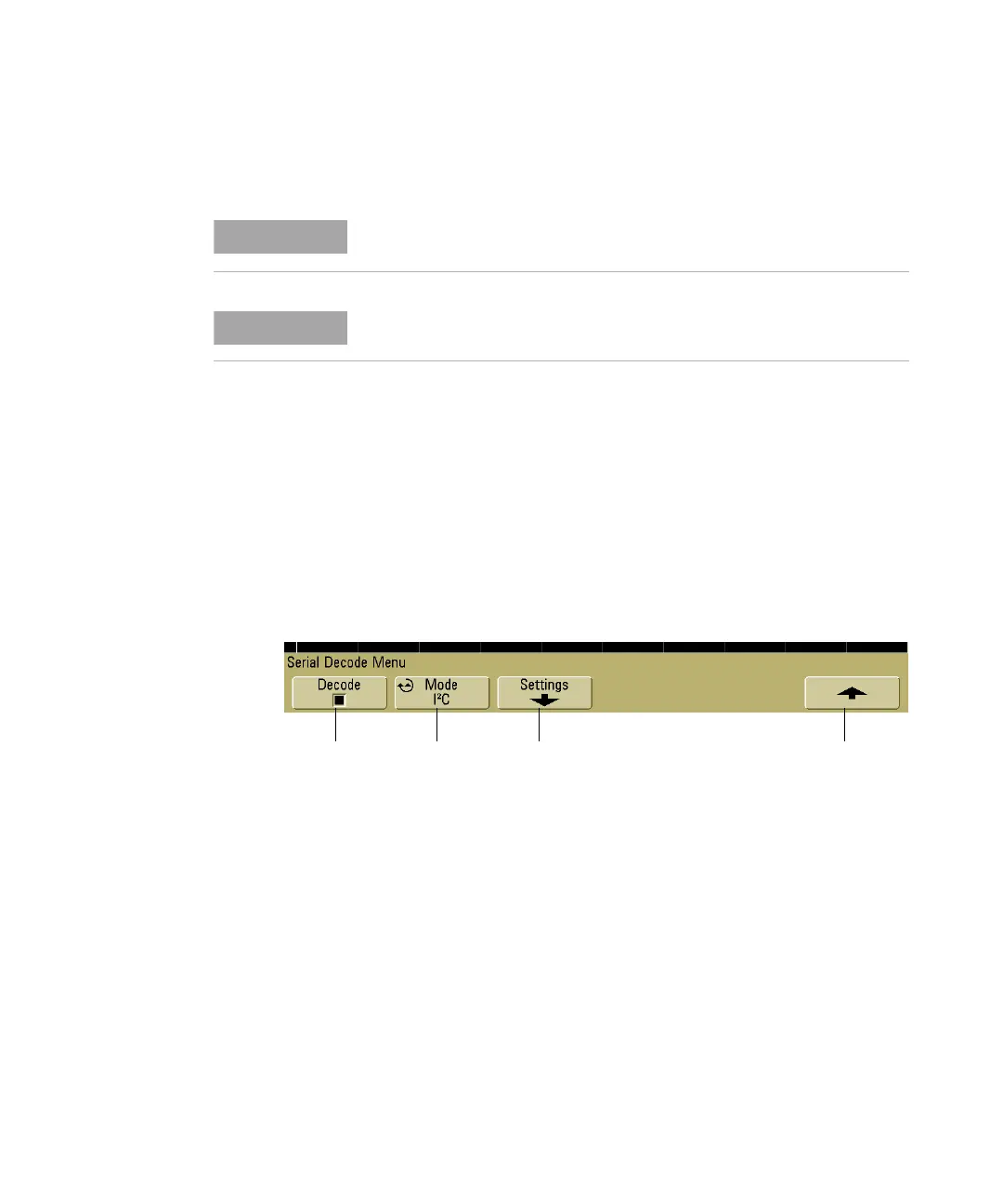

c In the Serial Decode Menu, press the Mode softkey.
d Use the Entry knob (or repeatedly press and release the
Mode softkey) to select the I
2
C serial decode mode.
NOTE
Because of oscilloscope hardware resource limitations, you cannot
decode I
2
C data while LIN triggering is selected.
NOTE
For I
2
C triggering setup see page 161.
Display
decode
Decode
mode
Signal
setup menu
Return to
previous menu
