Displaying Data 6
6000 Series Oscilloscope User’s Guide 275
To decode CAN data
1 Connect the CAN signal to one of the oscilloscope’s input
channels.
2 Set up the trigger mode as described in “Triggering the
Oscilloscope” on page 125. You can use CAN trigger or
another trigger type.

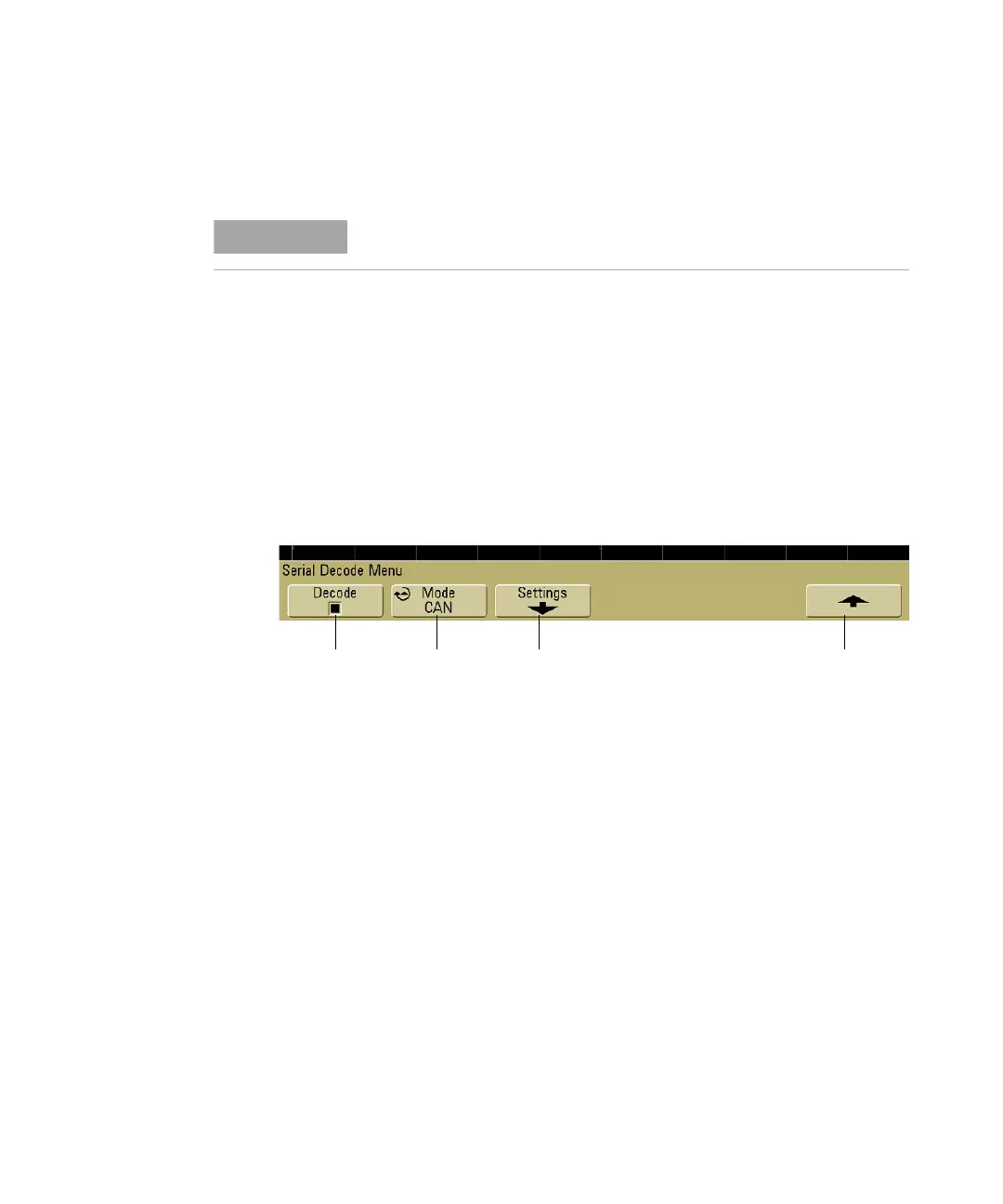

3 Select the CAN serial decode mode:
a Press the Acquire key.
b Press the Serial Decode softkey.
c In the Serial Decode Menu, press the Mode softkey.
d Use the Entry knob (or repeatedly press and release the
Mode softkey) to select the CAN serial decode mode.
NOTE
For CAN triggering setup see page 145.
Display
decode
Decode
mode
Signal
setup menu
Return to
previous menu
