Preshoot and Overshoot
• Preshoot*
• Overshoot*
* Measurement on analog channels only.
To make an automatic measurement
A brief description of how to make automatic measurements
is given on page 94.
Quick Meas makes automatic measurements on any channel
source or any running math function. The results of the last
four measurements selected are displayed on the dedicated
line above the softkeys, or in the display area when some
menus are selected. Quick Meas also makes measurements
on stopped waveforms when you are panning and zooming.
Cursors are turned on to show the portion of the waveform
being measured for the most recently selected measurement
(right-most on the measurement line).
1 Press the Quick Meas key to display the automatic
measurement menu.
2 Press the Source softkey to select the channel or running
math function on which the quick measurements will be
made.
Only channels or math functions that are displayed are
available for measurements. If you choose an invalid
source channel for a measurement, the measurement will
default to the nearest in the list that makes the source
valid.

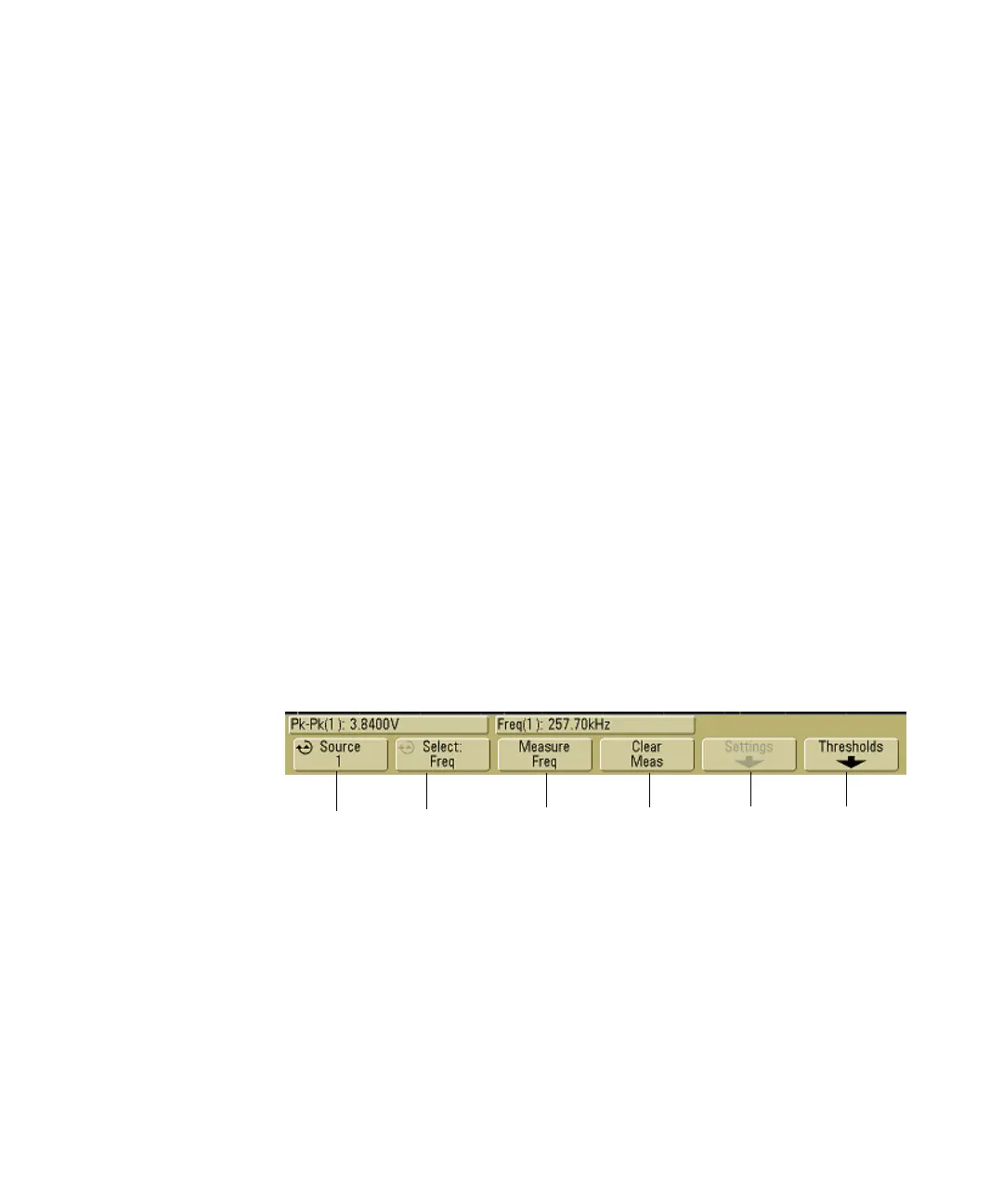

Source
select
Select
measurement
Press to make
measurement
Erase all
measurements
Additional
settings
Measurement
Thresholds
To Next Page
