Triggering the Oscilloscope 4
6000 Series Oscilloscope User’s Guide 157
Triggering on FlexRay Frames, Times, or Errors

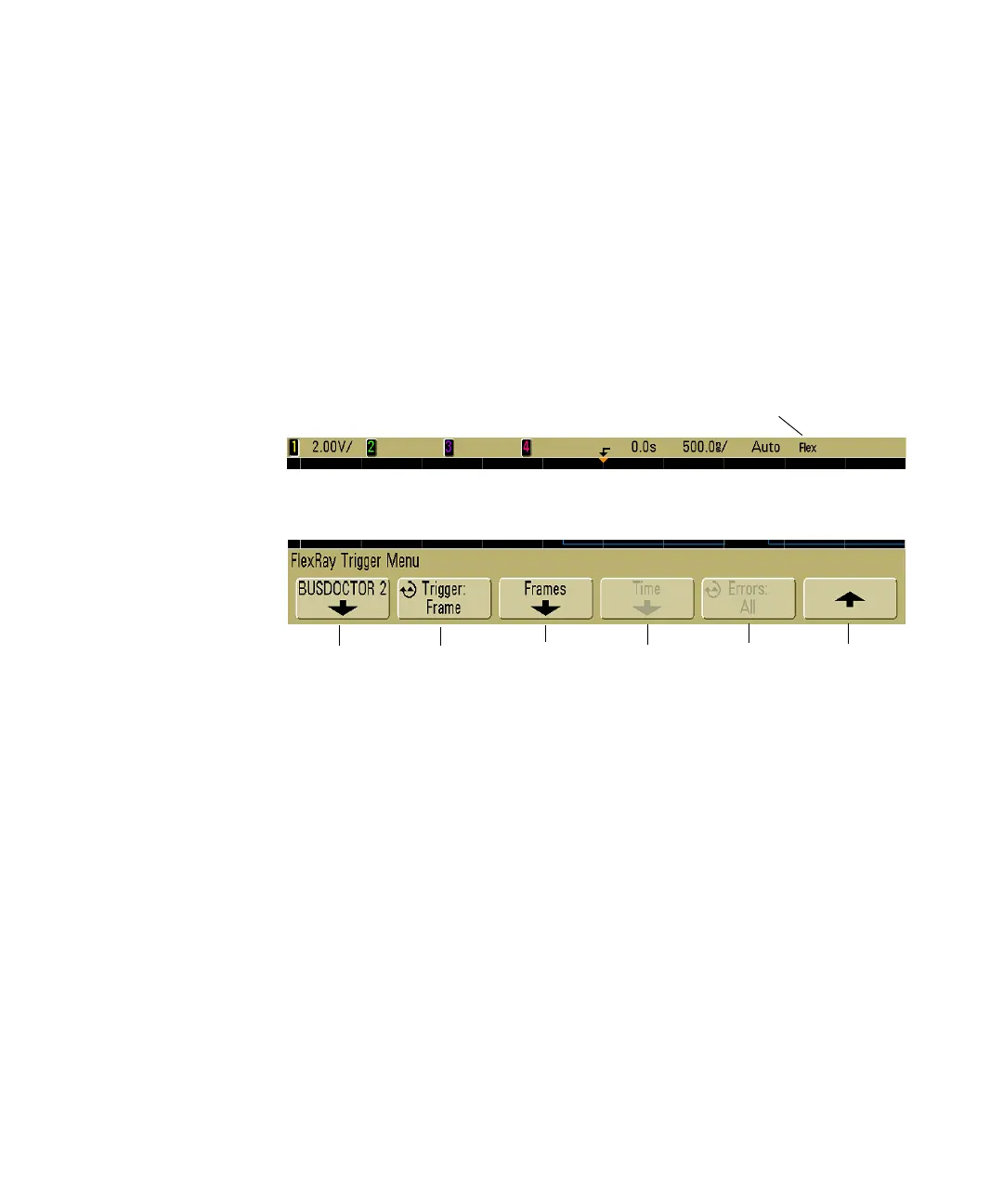

Accessing the FlexRay Trigger Menu
1 In the Trigger section on the front panel, press the More key.
2 Press the Trigger softkey, and use the Entry knob to select
FlexRay.
3 Press the Settings softkey to access the FlexRay Trigger Menu.
Triggering on FlexRay Frames
1 In the FlexRay Trigger Menu (see “Accessing the FlexRay
Trigger Menu” on page 157), press the Trigger softkey, and use
the Entry knob to select Frame.
2 Press the Frames softkey to access the FlexRay Frame Trigger
Menu.
3 Press the Cyc Ct Rep softkey, and use the Entry knob to select
the cycle count repeat value from 2, 4, 8, 16, 32, or 64.
4 Press the Cyc Ct Bas softkey, and use the Entry knob to select
the cycle count base value from 0 through the Cyc Ct Rep value
minus 1, or All. For example, with a base value of 1 and a
repetition value of 16, the oscilloscope triggers on cycles 1,
17, 33, 49, and 65.
Trigger
condition
BUSDOCTOR 2
Menu
FlexRay
trigger
Return to
previous menu
Frames, Time, Errors Selection
