Front-Panel Controls 2
6000 Series Oscilloscope User’s Guide 81
Using the analog channels
Connect the oscilloscope probes for channels 1 and 2 to the
Probe Comp output on the front panel of the instrument.
1 Press the 1 key in the Analog section of the oscilloscope’s
front panel to display the Channel 1 menu.
Pressing an analog channel key displays the channel’s menu
and turns the display of the channel on or off. The channel is
displayed when the key is illuminated.
On 6000L models, select Analog from the Main Menu and use
the menu.

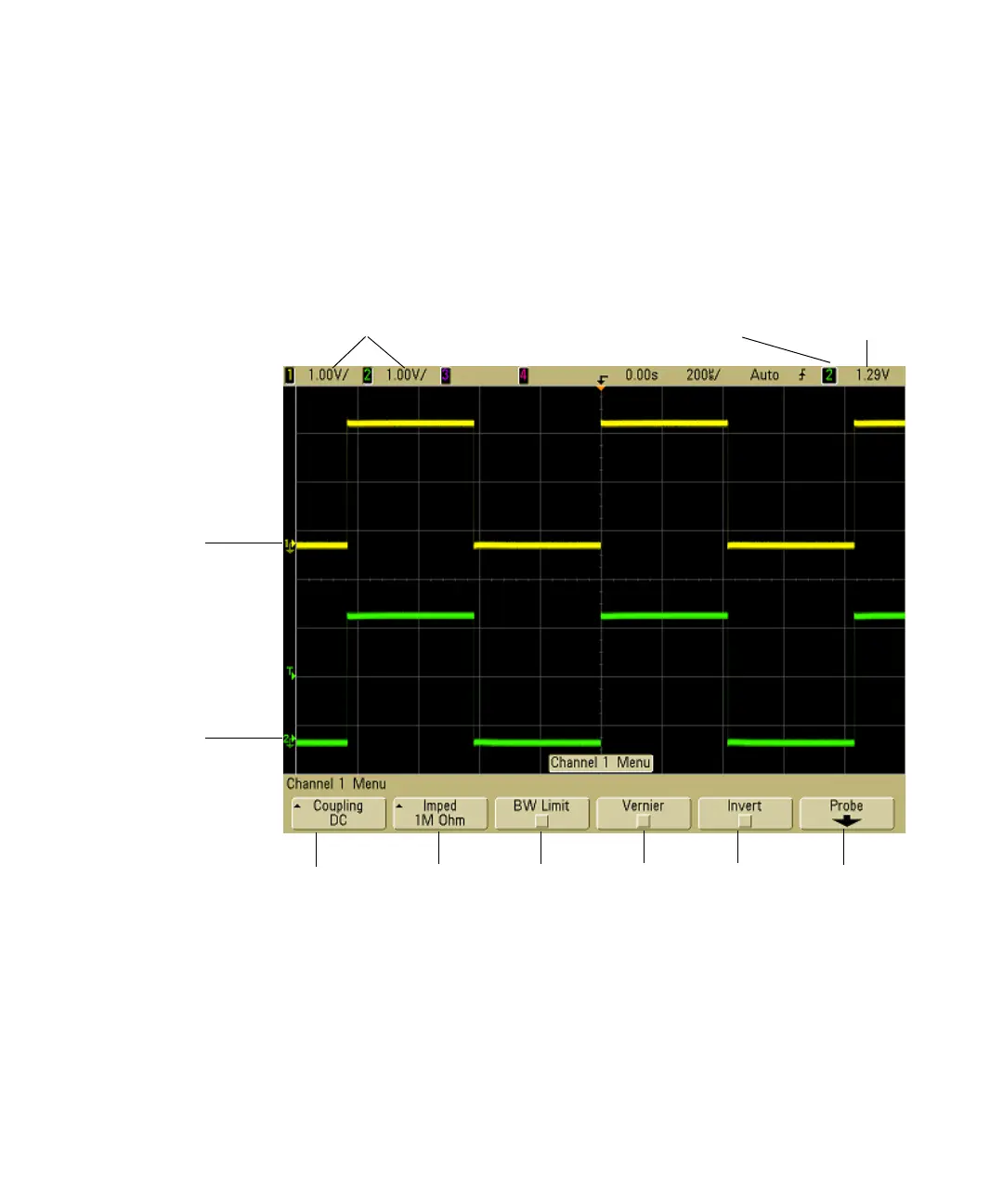

Channel
coupling
Invert
channel
Probe
menu
Trigger level
or threshold
Trigger
source
Channel,
Volts/div
Channel
vernier
Channel 2
ground level
Channel 1
ground level
Bandwidth
limit
Input
impedance
