168 6000 Series Oscilloscope User’s Guide
4 Triggering the Oscilloscope
3 Press the Slope softkey to specify the slope of the edge.
4 Press the Idle softkey; then, turn the Entry knob to specify
the idle time.
5 Press the Edge softkey; then, turn the Entry knob to which
edge to trigger on.
Assign
channels
Slope of
edge
Idle time
select
Trigger level
or threshold

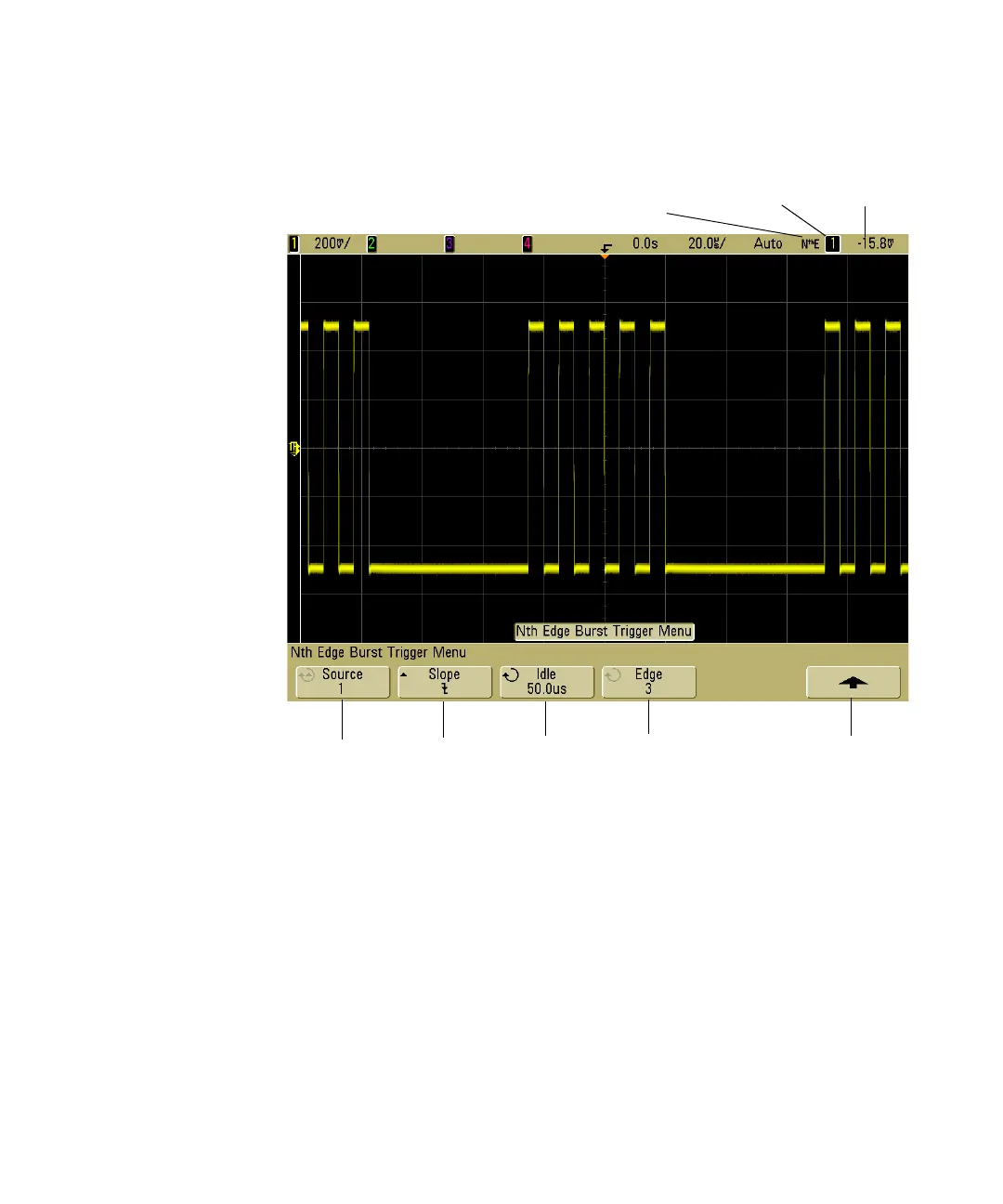

Currently selected Clock,
Framing, or Data channel
Nth Edge Burst trigger
Return to
previous menu
Nth edge
select
