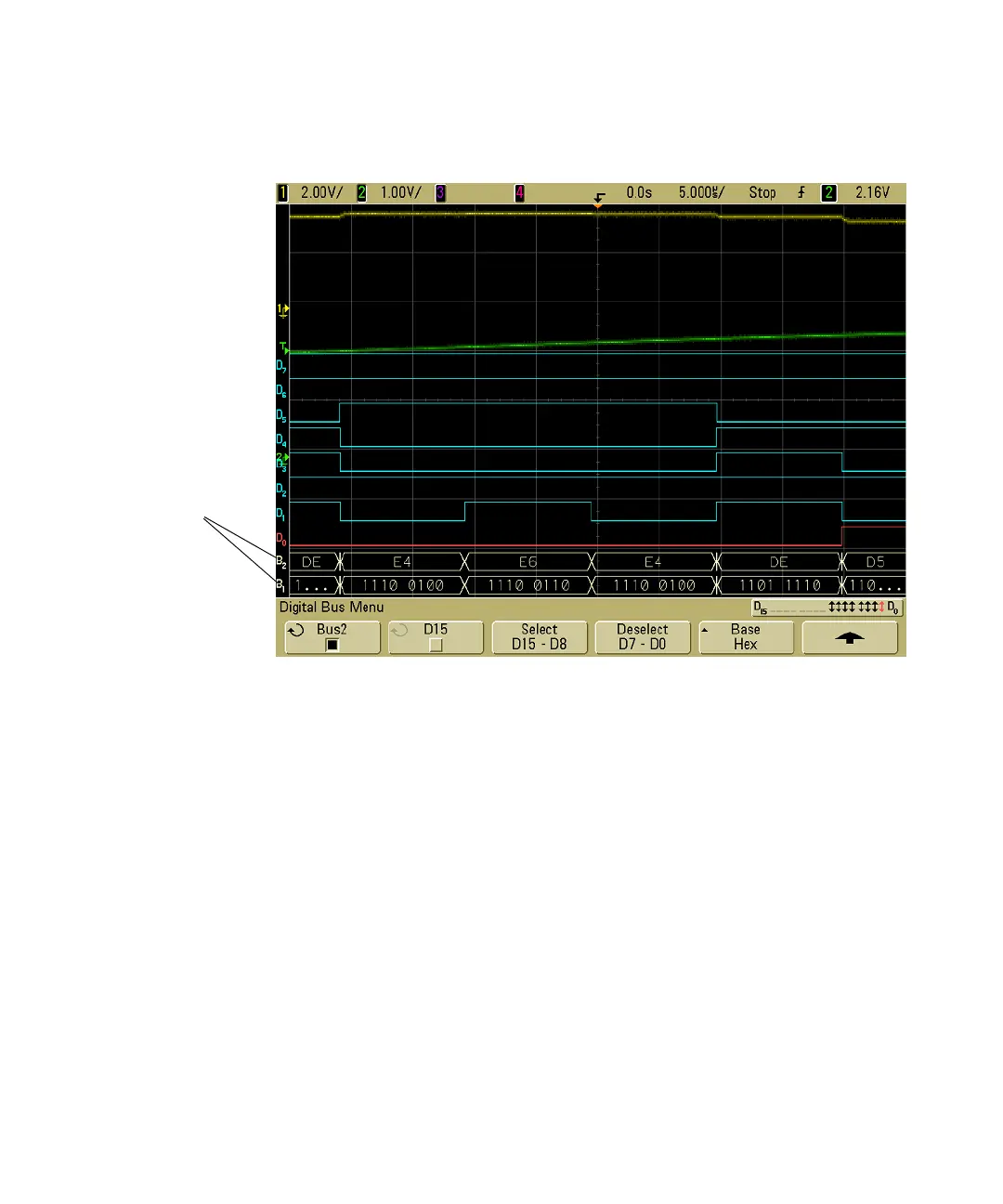

The buses are shown at the bottom of the display.
Using cursors to read bus values
To read the digital bus value at any point using the cursors:
1 Switch on Cursors (by pressing the Cursor key on the front
panel)
2 Press the cursor Mode softkey and change the mode to Hex or
Binary.
3 Press the Source softkey and select Bus1 or Bus2.
Bus values
can be
shown i n
hex or
binary
