Triggering the Oscilloscope 4
6000 Series Oscilloscope User’s Guide 165

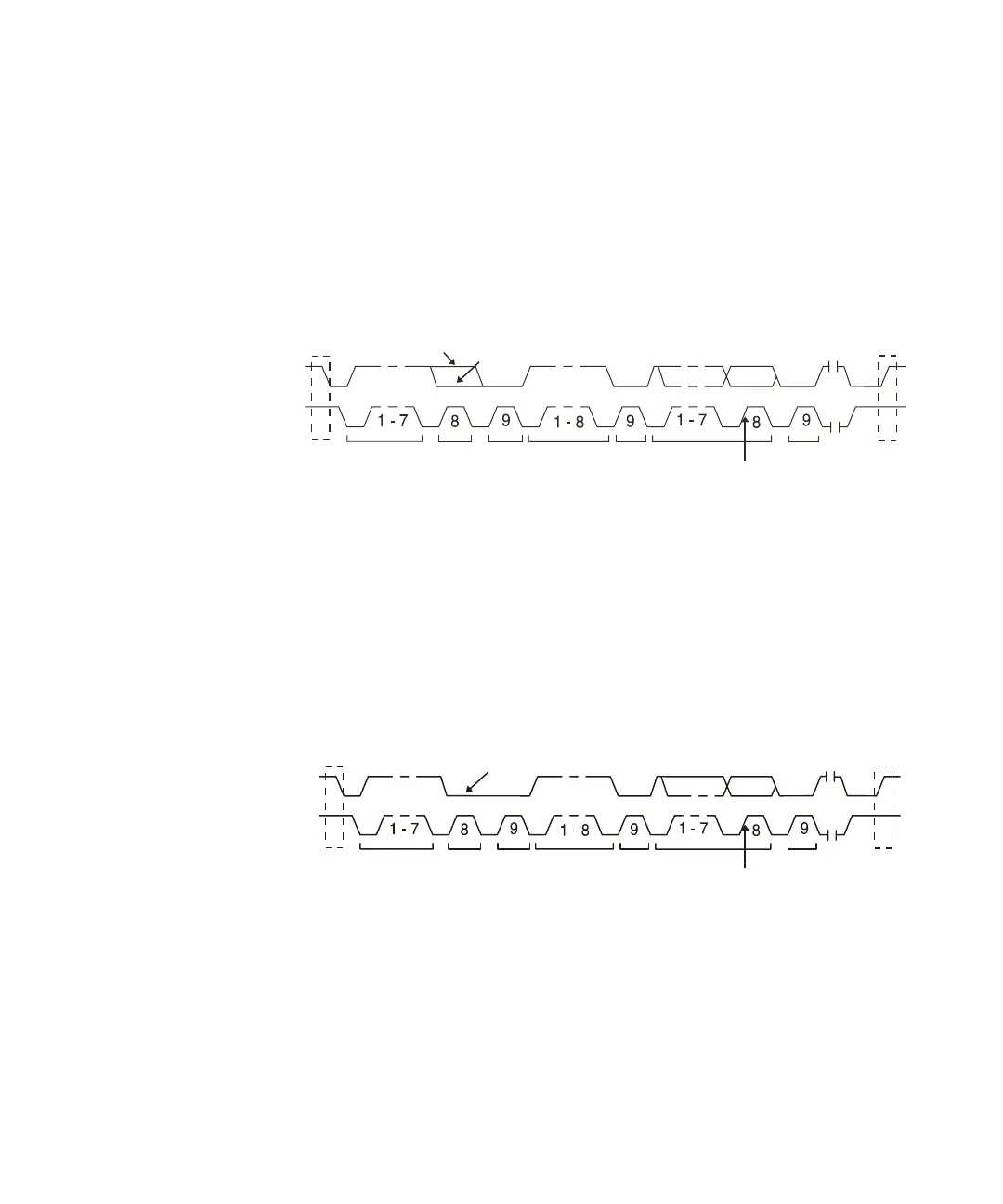

• Frame (Start: Addr7: Read: Ack: Data: Ack: Data2) or Frame
(Start: Addr7: Write: Ack: Data: Ack: Data2) — The oscilloscope
triggers on a read or write frame in 7-bit addressing mode
on the 26th clock edge if all bits in the pattern match. For
triggering purposes, a restart is treated as a start
condition.
• 10-bit Write — The oscilloscope triggers on a 10-bit write
frame on the 26th clock edge if all bits in the pattern
match. The frame is in the format:
Frame (Start: Address byte 1: Write: Address byte 2: Ack:
Data)
For triggering purposes, a restart is treated as a start
condition.
7 If you have set the oscilloscope to trigger on an EEPROM
Data Read condition:
SCL
SDA
Stop
Condition
Trigger point
26th clock edge
Ack
Ack
Ack
Start
Condition
Address
R/W Data
Data 2
Read
Write
SCL
SDA
Start or
Restart
Condition
Trigger point
26th clock edge
Address
1st byte
Write
R/
Ack1
DataAck2
Stop
Condition
Ack
Address
2nd byte
