208
6000 Series Oscilloscope User’s Guide
5
Making Measurements

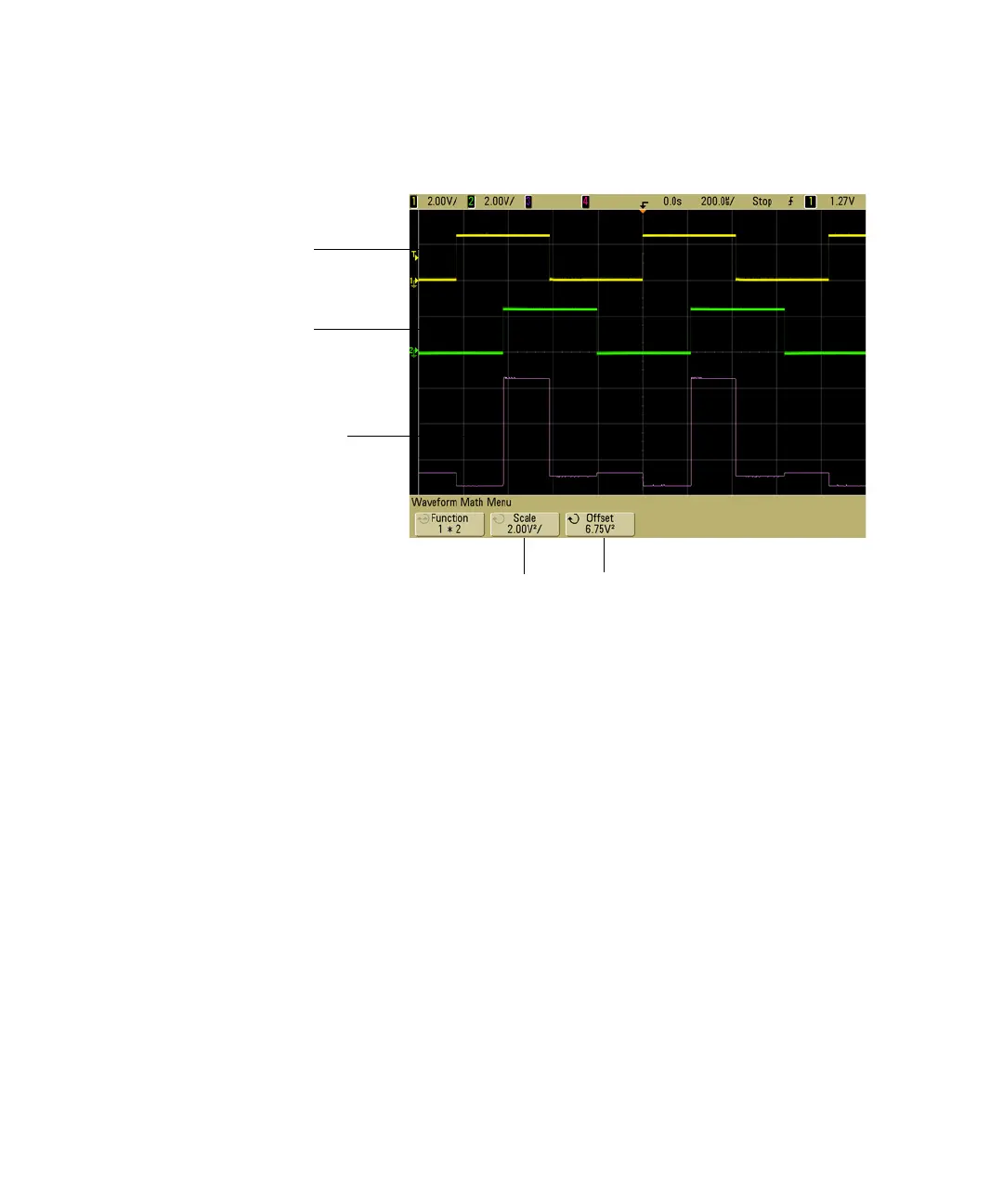

The figure below sho
ws an example of multiply.
Figure 27
Multiply
Channel 1
Channel 2
1 * 2 waveform
1 * 2
Scale
1 * 2
Offset
208
210
