• Offset —lets you set your own offset for the dV/dt math
function. The offset value is in units/second where
units can be V (Volts), A (Amps), or W (Watts) and is
represented by the center horizontal grid line of the
display. Press the Offset softkey, then turn the Entry
knob to change the offset for d/dt.
A scale unit of U (undefined) will be displayed for scale
and offset when 1-2 or 1+2 is the selected source if
channel 1 and channel 2 are set to dissimilar units in the
channel Probe Units softkey.
The figure below shows an example of differentiate.

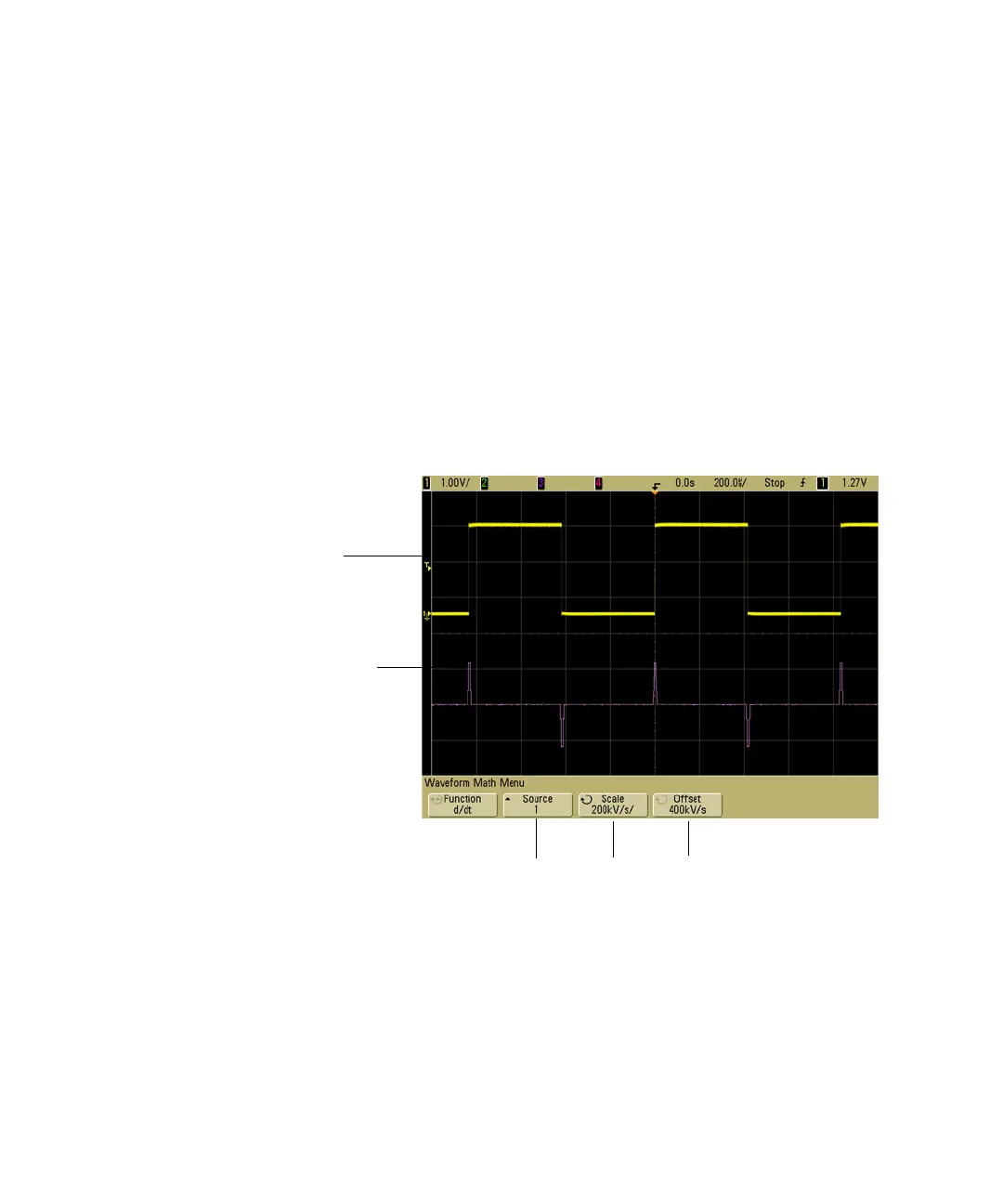

Figure 29 Differentiate
Channel 1
d/dt waveform
d/dt
Scale
d/dt
Offset
Source
select
To Next Page
