waveforms. Negative delay values indicate that the selected
edge of source 1 occurred after the selected edge of source
2.
1 Press the Quick Meas&Select and select Delay. Press the
Settings softkey to select the source channels and slope for
the delay measurement.
The default Delay settings measure from the rising edge of
channel 1 to the rising edge of channel 2.
2 Press the Measure Delay softkey to make the measurement.
The following example shows a delay measurement between
the rising edge of channel 1 and the rising edge of channel
2.

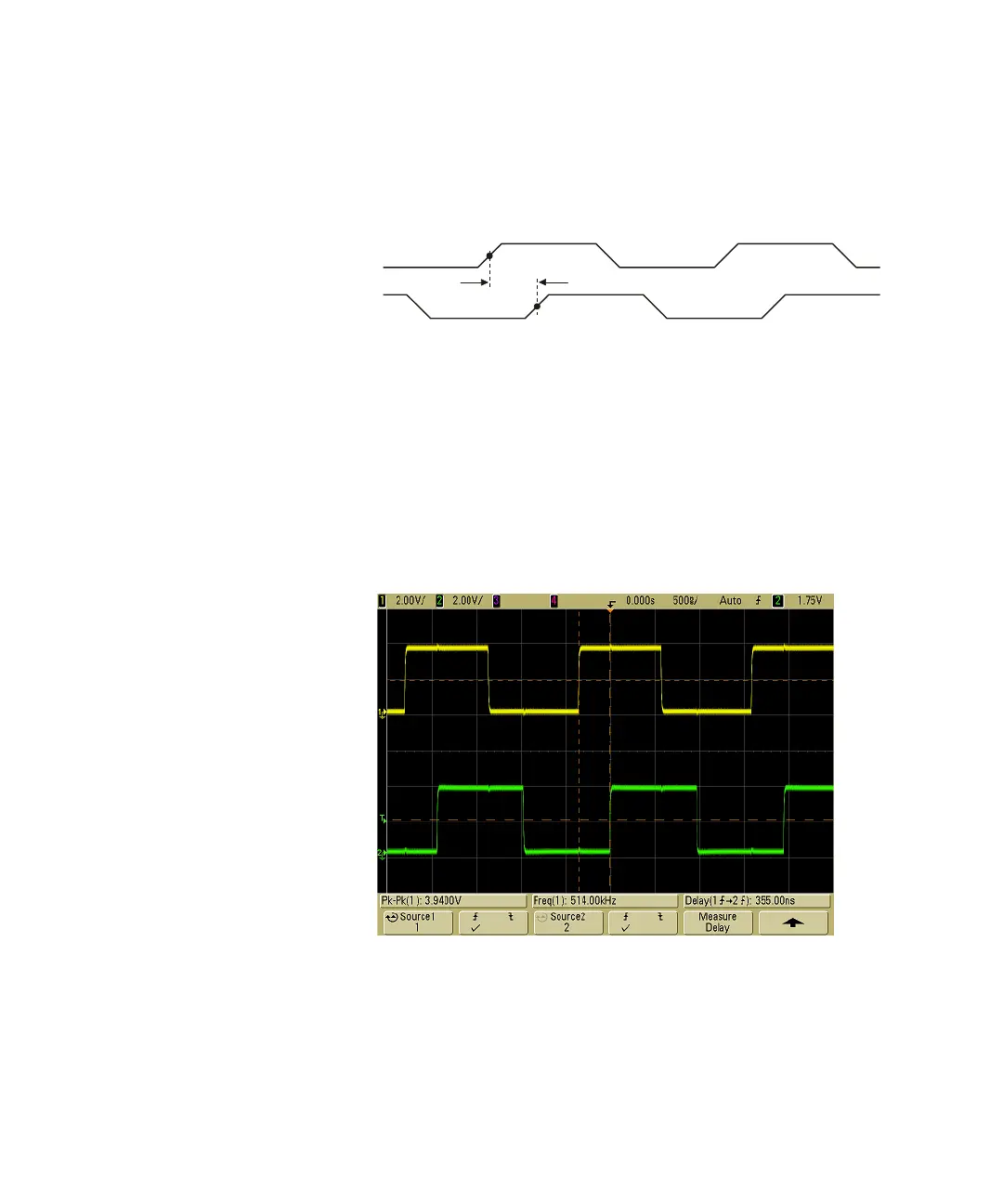

Figure 39 Delay Measurement
Source 1
Source 2
Delay
