Displaying Data 6
6000 Series Oscilloscope User’s Guide 273
You can use the Delayed horizontal sweep mode for easier
navigation of the acquired data.

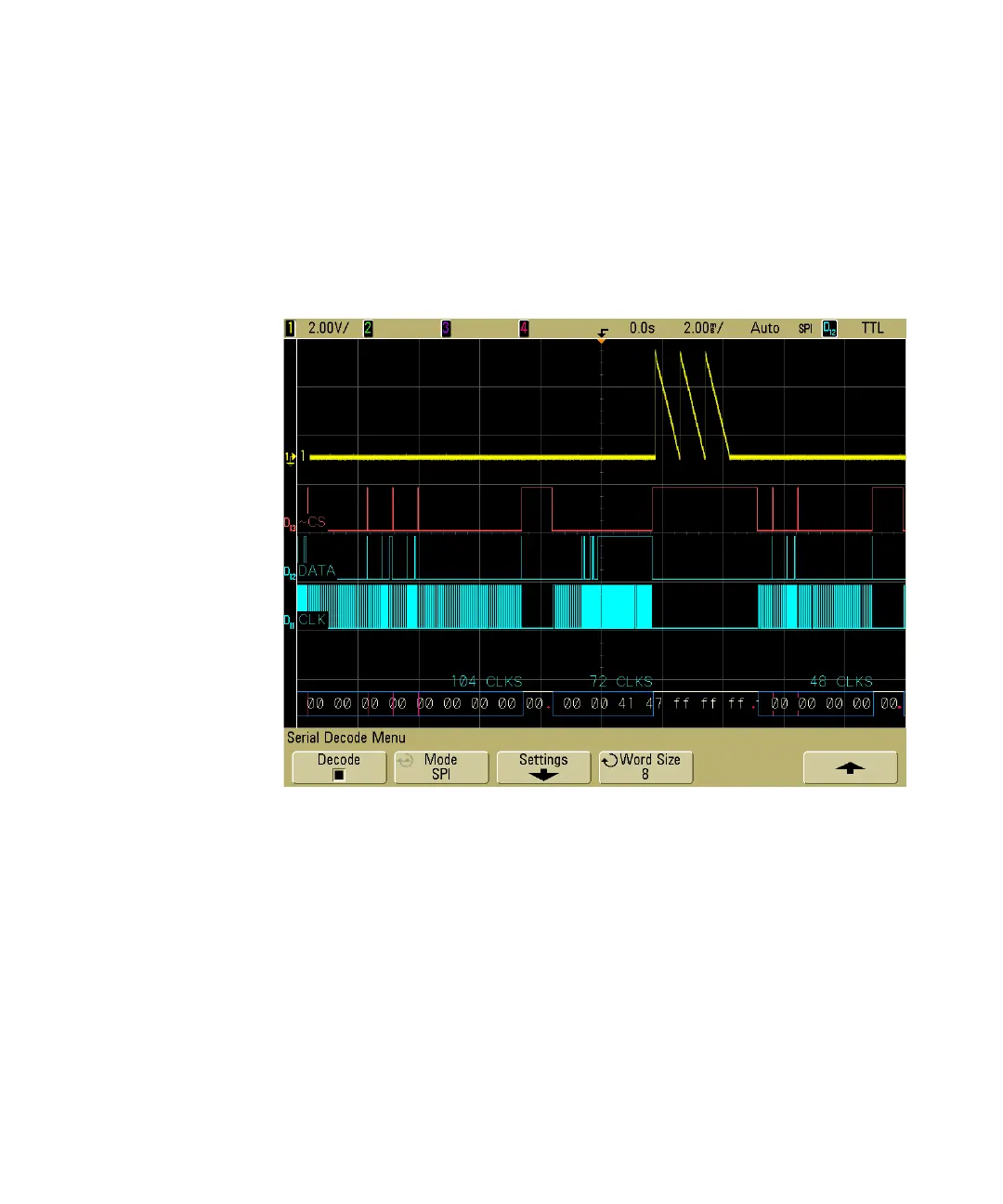

Interpreting Decoded SPI Data
• White lines show an idle bus.
• Blue rectangles show an active bus (inside a packet/frame).
• The number of clocks in a frame appears in light-blue above
the frame, to the right.
• Decoded hexadecimal data values appear in white and may
extend beyond the frame if an idle period follows.
• Red dots in the decode line indicate that there is data that is
not being displayed. Scroll or expand the horizontal scale to
view the information.
