316 6000 Series Oscilloscope User’s Guide
7 Saving and Printing Data
4 Turn the Entry knob to select the first character in the file
name.

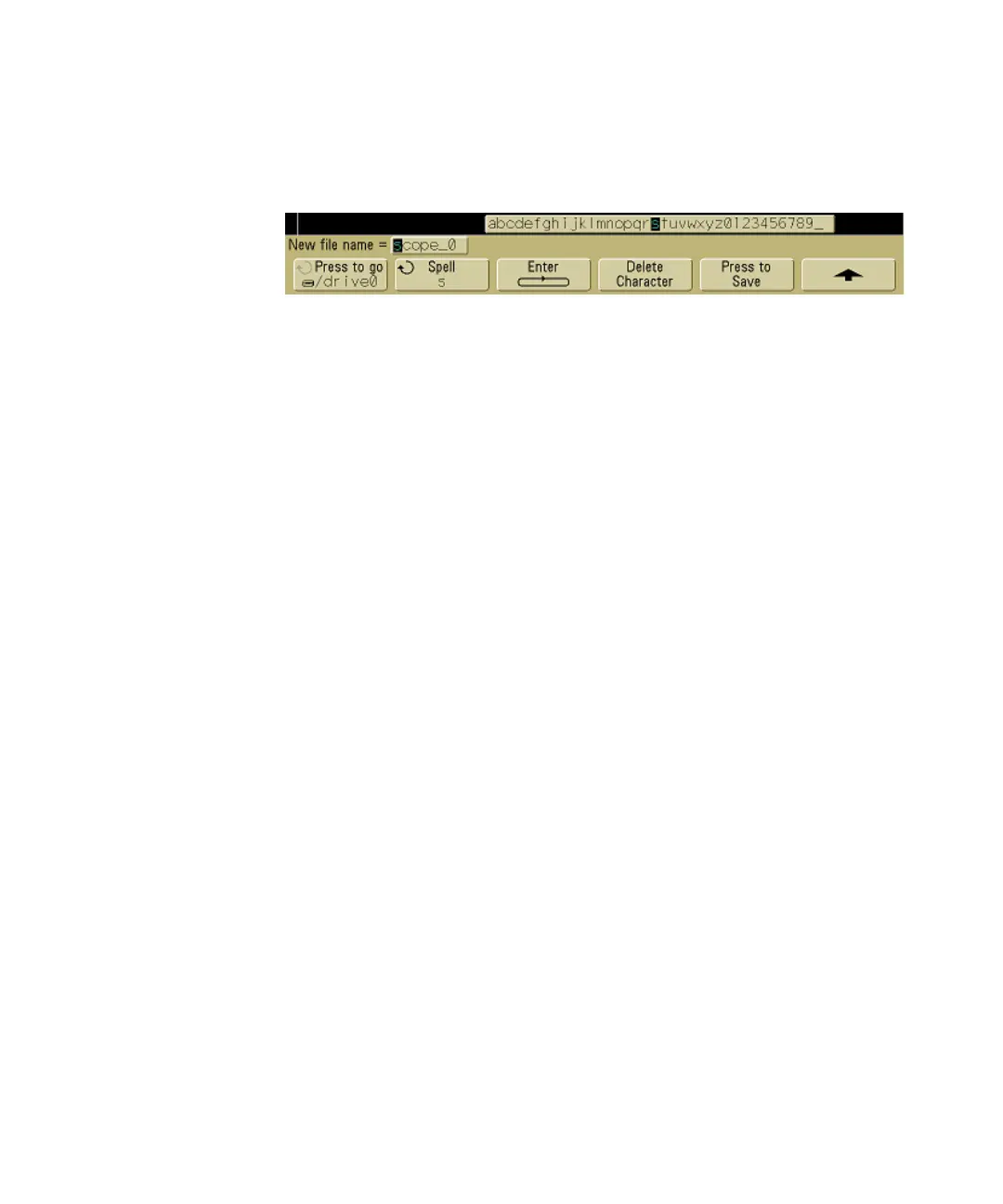

Turning the Entry knob selects a character to enter into the
highlighted position shown in the “New file name =” line
above the softkeys and in the Spell softkey.
5 Press the Enter softkey to enter the selected character and go
to the next character position.
You may position the highlight on any character in the file
name by successively pressing the Enter softkey.
6 To delete a character from the file name, press the Enter
softkey until the letter you want to delete is highlighted, then
press the Delete Character softkey.
7 When you are done entering characters for the file name,
press the Press to Save softkey to save the file.
Two files will be saved to the USB mass storage device. In the
example above, SCOPE1.TRC will be the trace file and
SCOPE1.SCP will be the setup file. You do not need to
remember these file extensions because you can select trace,
setup, or both when you recall this information using the Recall
menu.
