Agilent Technologies MSO6012A User Manual

Reference 8
6000 Series Oscilloscope User’s Guide 329

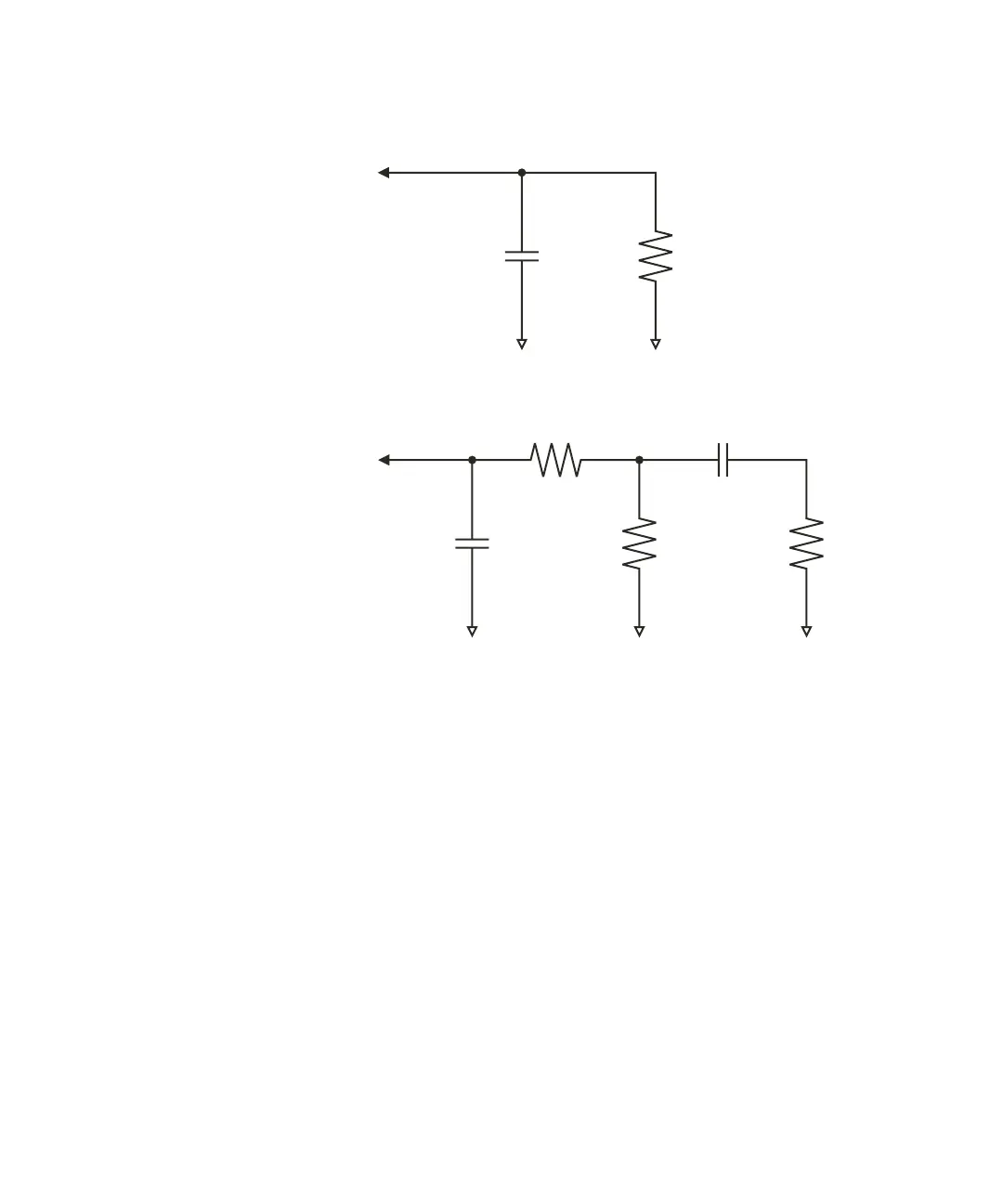

Figure 49 DC and Low-Frequency Probe Equivalent Circuit
Figure 50 High-Frequency Probe Equivalent Circuit
The impedance plots for the two models are shown in these
figures. By comparing the two plots, you can see that both the
series tip resistor and the cable’s characteristic impedance
extend the input impedance significantly. The stray tip
capacitance, which is generally small (1 pF), sets the final break
point on the impedance chart.
8.5 pF 100 kW
150 W1 pF
7.5 pF
100 kW
250 W
