90 6000 Series Oscilloscope User’s Guide
2 Front-Panel Controls

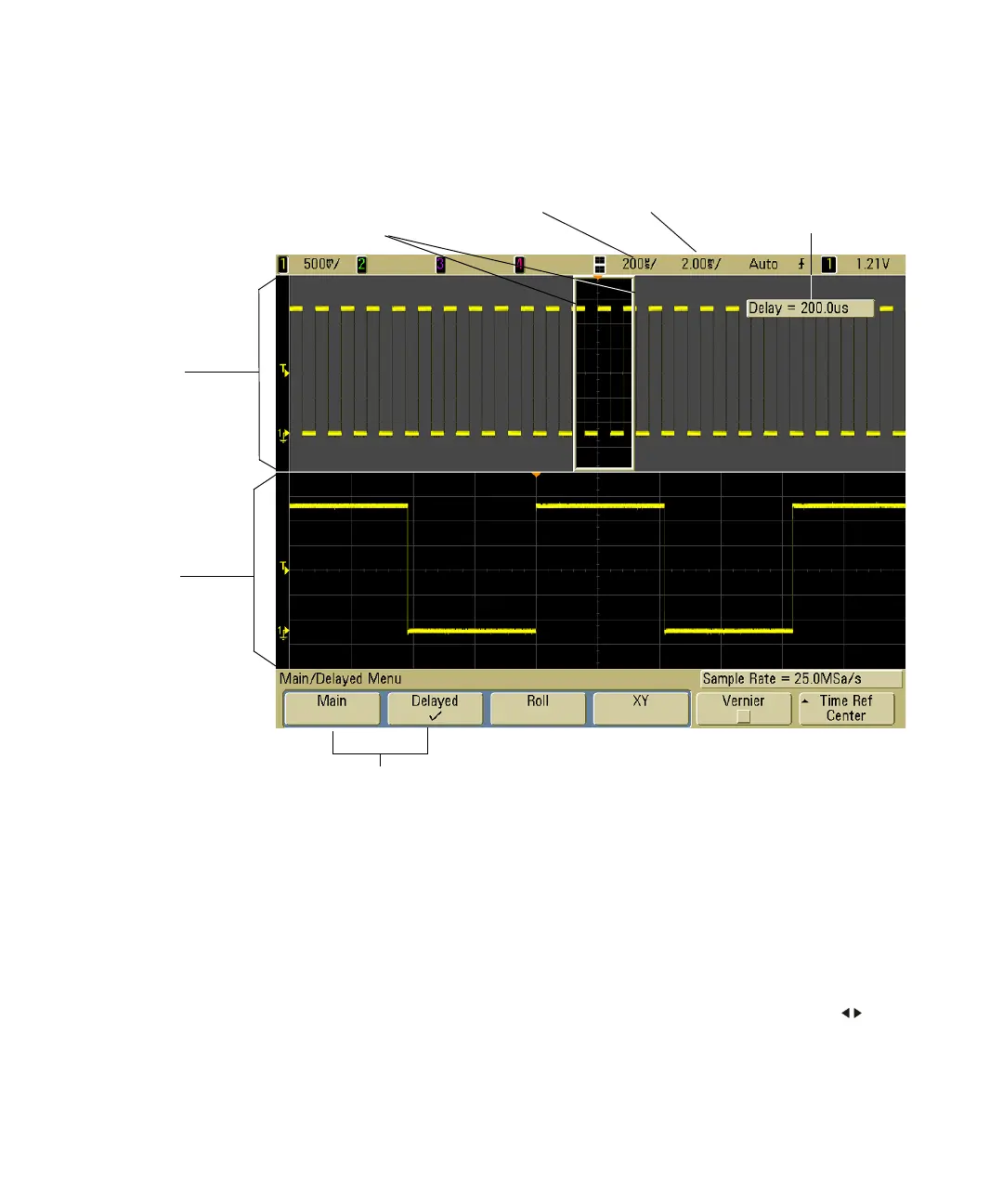

The area of the main display that is expanded is intensified and
marked on each end with a vertical marker. These markers show
what portion of the main sweep is expanded in the lower half.
The Horizontal knobs control the size and position of the
delayed sweep. The delay value is momentarily displayed in the
upper-right portion of the display when the delay time ( )
knob is turned.
Time/div for
main sweep
Time/div for
delayed sweep
Delay time
momentarily displays
when the delay time
knob is turned
Select main or
delayed sweep
Delayed sweep
window
Main sweep
window
These markers define the
beginning and end of the
delayed sweep window
